SKU: RPNA30/47-MB

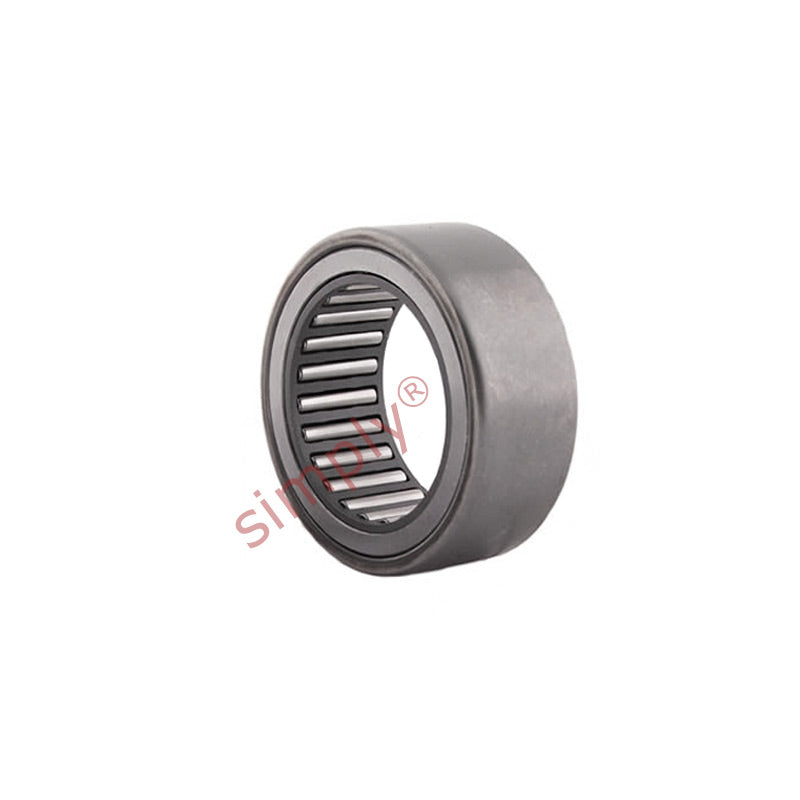

Major Brand RPNA30/47 Needle Roller Bearing Alignment Type Without Shaft Sleeve 30x47x20
Major Brand RPNA30/47 Needle Roller Bearing Alignment Type Without Shaft Sleeve 30x47x20
Regular price
Rs. 6,995.52
ex VAT
Regular price
Sale price
Rs. 6,995.52
ex VAT
In stock
Price Break
10+
Rs. 6,226.01
19+
Rs. 5,876.24
29+
Rs. 5,806.28
39+
Rs. 5,736.33
49+
Rs. 5,666.37
74+
Rs. 5,596.42
99+
Rs. 5,246.64
199+
Rs. 5,176.68
249+
Rs. 5,106.73
499+
Rs. 5,036.77
999+
Rs. 4,896.86
Couldn't load pickup availability
Description
Description
|
Alignment Needle Roller without Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied without the inner ring, tolerates misalignment |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 47mm
- Width:
- 20mm
Technical
Technical
| Fw | 30mm |
|---|---|
| D | 47mm |
| B | 20mm |
| Dynamic load | 22900 N |
| Static load | 38000 N |
| Fatigue load limit Pu | 4800 N |
| Speed in grease | 8500 rpm |
| Speed in oil | 13000 rpm |
| D1 | 42mm |
| r min | 1mm |
| Da min | 41mm |
| Da max | 42mm |
| ra max | 1mm |
| Weight | 130 g |
