SKU: RPNA20/35-EU

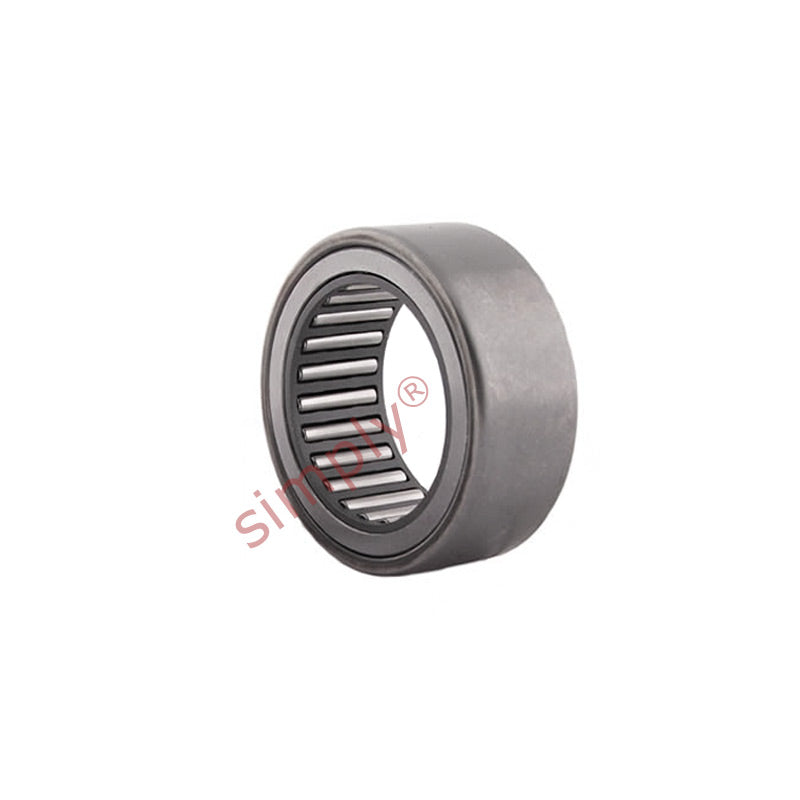

RPNA20/35 Budget Needle Roller Bearing Alignment Type no Inner Race 20x35x16
RPNA20/35 Budget Needle Roller Bearing Alignment Type no Inner Race 20x35x16
Regular price
Rs. 1,951.48
ex VAT
Regular price
Sale price
Rs. 1,951.48
ex VAT
In stock
Price Break
10+
Rs. 1,736.82
19+
Rs. 1,639.24
29+
Rs. 1,619.73
39+
Rs. 1,600.21
49+
Rs. 1,580.70
74+
Rs. 1,561.18
99+
Rs. 1,463.61
199+
Rs. 1,444.10
249+
Rs. 1,424.58
499+
Rs. 1,405.07
999+
Rs. 1,366.04
Couldn't load pickup availability
Description
Description
|
Budget Alignment Needle Roller without Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied without the inner ring, tolerates misalignment |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 35mm
- Width:
- 16mm
Technical
Technical
| Fw | 20mm |
|---|---|
| D | 35mm |
| B | 16mm |
| Dynamic load C | 13200 N |
| Static load Co | 19300 N |
| Fatigue load limit Pu | 2280 N |
| Speed in grease | 13000 rpm |
| Speed in oil | 19000 rpm |
| D1 | 30.5mm |
| r min | 1mm |
| Da min | 29.5mm |
| Da max | 30.5mm |
| ra max | 1mm |
| Weight | 62 g |
