SKU: RPNA15/28-MB

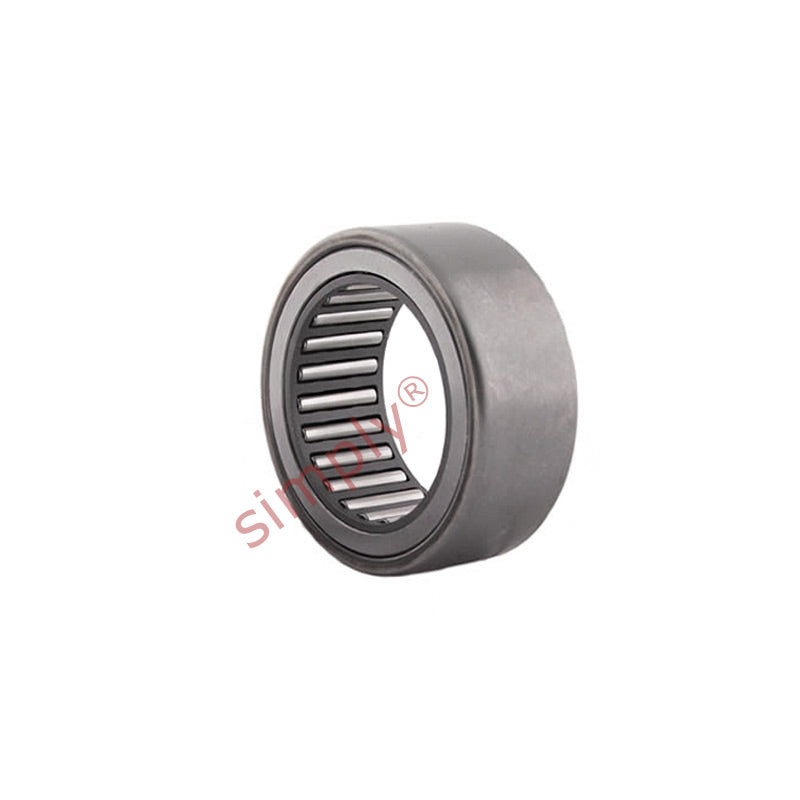

Major Brand RPNA15/28 Needle Roller Bearing Alignment Type Without Shaft Sleeve 15x28x12
Major Brand RPNA15/28 Needle Roller Bearing Alignment Type Without Shaft Sleeve 15x28x12
Regular price
Rs. 3,725.71
ex VAT
Regular price
Sale price
Rs. 3,725.71
ex VAT
In stock
Price Break
10+
Rs. 3,315.88
19+
Rs. 3,129.60
29+
Rs. 3,092.34
39+
Rs. 3,055.08
49+
Rs. 3,017.83
74+
Rs. 2,980.57
99+
Rs. 2,794.28
199+
Rs. 2,757.03
249+
Rs. 2,719.77
499+
Rs. 2,682.51
999+
Rs. 2,608.00
Couldn't load pickup availability
Description
Description
|
Alignment Needle Roller without Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied without the inner ring, tolerates misalignment |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 28mm
- Width:
- 12mm
Technical
Technical
| Fw | 15mm |
|---|---|
| D | 28mm |
| B | 12mm |
| Dynamic load | 7370 N |
| Static load | 9150 N |
| Fatigue load limit Pu | 1080 N |
| Speed in grease | 16000 rpm |
| Speed in oil | 24000 rpm |
| D1 | 24.5mm |
| r min | 1mm |
| Da min | 23.5mm |
| Da max | 24.5mm |
| ra max | 1mm |
| Weight | 32 g |
