SKU: RNU304-MB

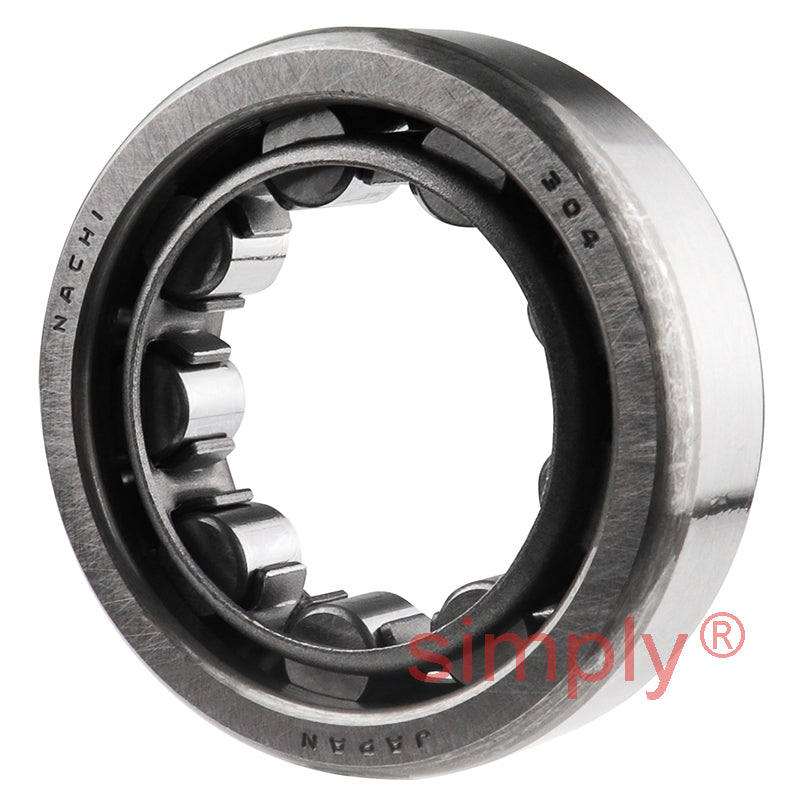

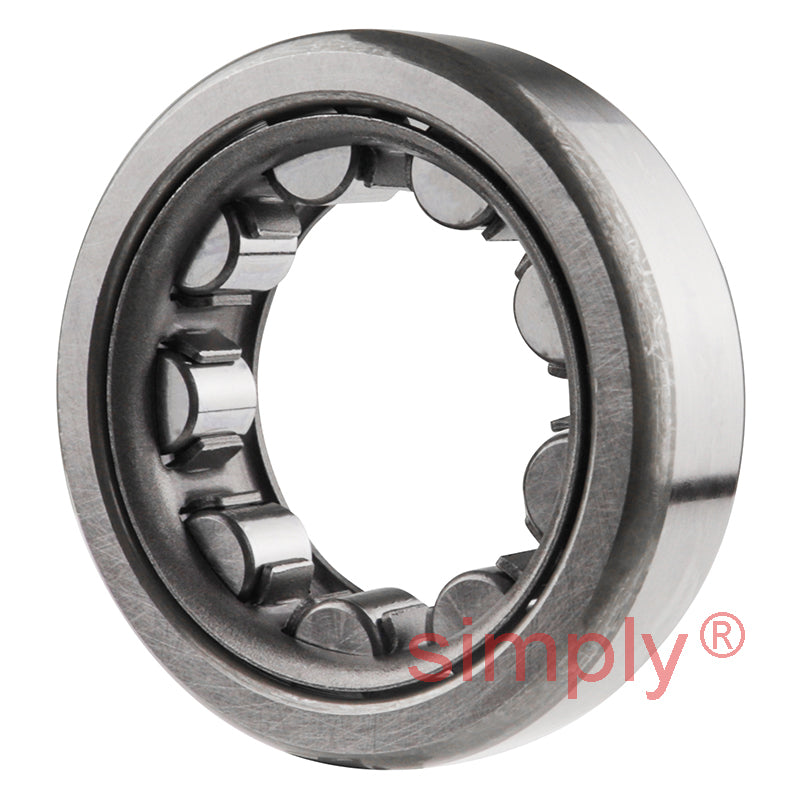

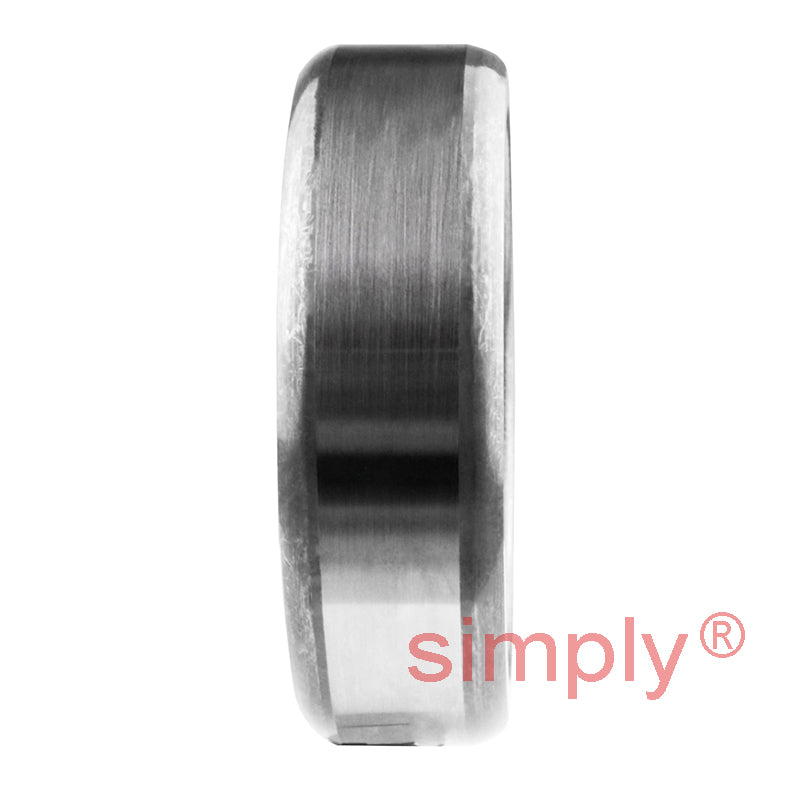

Major Brand RNU304 Single Row Cylindrical Roller Bearing 28.5x52x15mm
Major Brand RNU304 Single Row Cylindrical Roller Bearing 28.5x52x15mm
Regular price
Rs. 6,664.66
Regular price
Sale price
Rs. 6,664.66
Taxes included.
In stock
Price Break
10+
Rs. 5,931.55
19+
Rs. 5,598.31
29+
Rs. 5,531.67
39+
Rs. 5,465.02
49+
Rs. 5,398.37
74+
Rs. 5,331.73
99+
Rs. 4,998.50
199+
Rs. 4,931.85
249+
Rs. 4,865.20
499+
Rs. 4,798.56
999+
Rs. 4,665.26
Description
Description
|
RNU Series Cylindrical roller Bearings: Typically found in applications where maximum shaft strength is required but a smaller footprint for the bearing is desirable, supplied without inner race these bearings are designed to run directly onto a hardened shaft , a good example of where these are found is in motorcycle crankshaft assemblies and gearboxes where compactness and strength are key factors in the design. Note: For a given RNU series bearing there may be 2 different inside diameters, The E series generally have a smaller inside diameter. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 28.5mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
Technical
Technical
| d | 28.5mm |
|---|---|
| D | 52mm |
| C | 15mm |
| C1 | 3.5mm |
| Dynamic load | 20.5 kN |
| Static load | 10.4 kN |
| Fatigue load limit Pu | 2080 kN |
| Reference speed | 15000rpm |
| Limiting speed | 18000rpm |
| r1,2min | 1.1mm |
| Weight | 0.11kg |
