SKU: RNU212ECJ-SKF

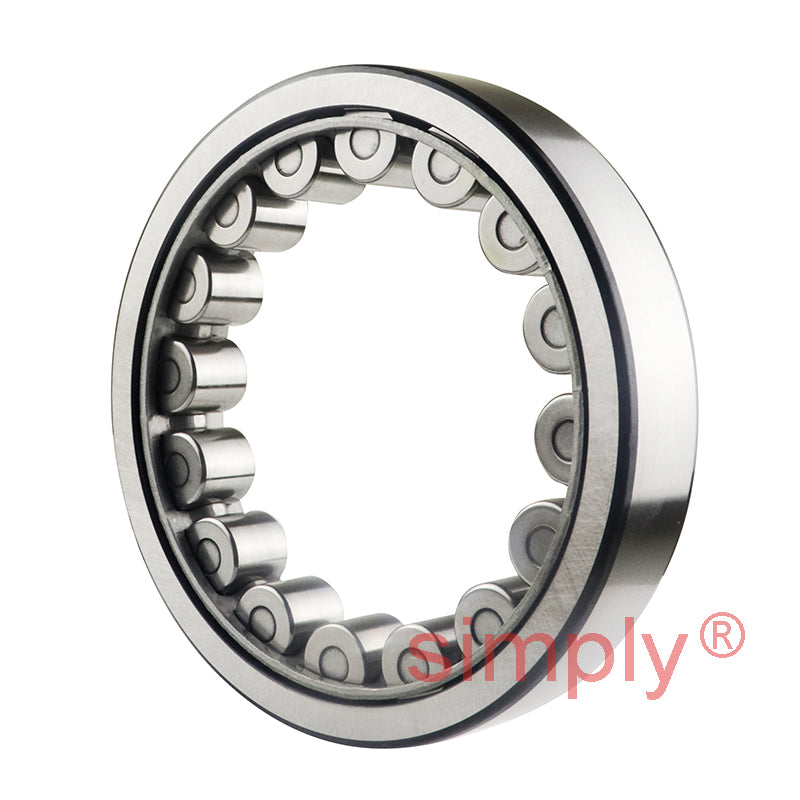

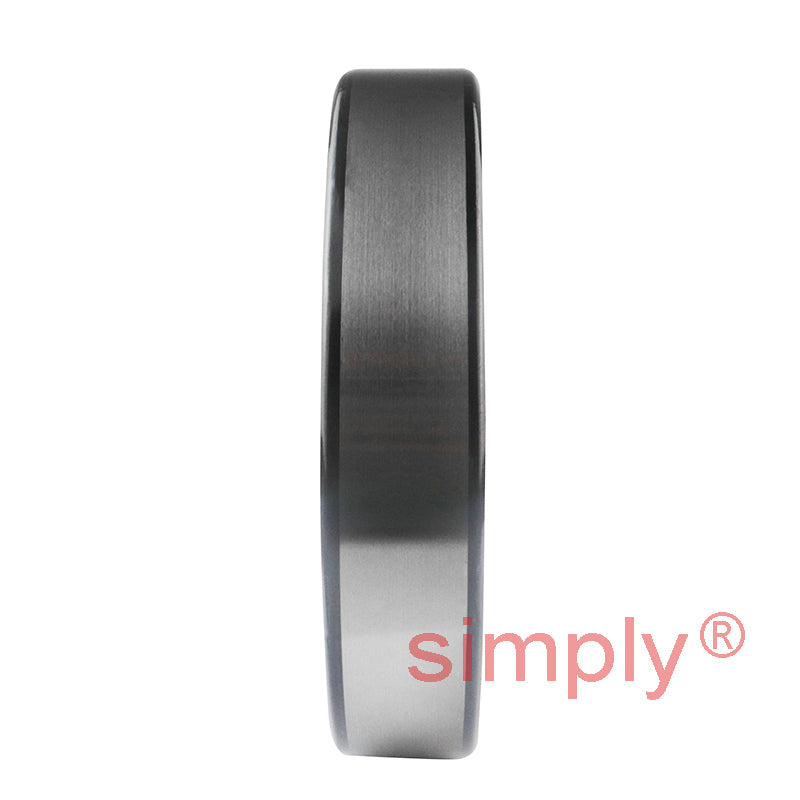

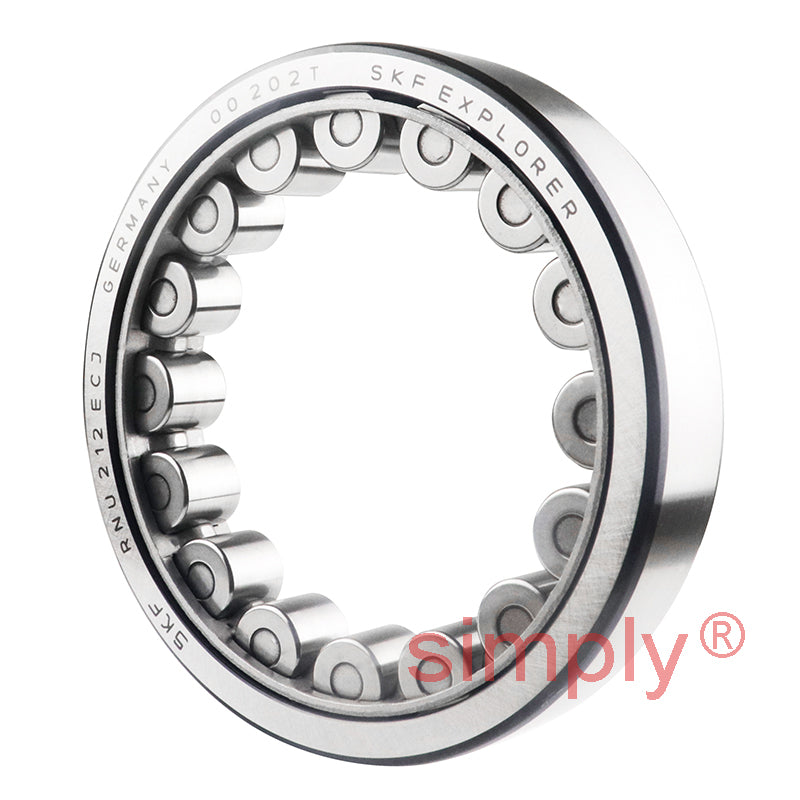

SKF RNU212ECJ Single Row Cylindrical Roller Bearing 72x110x22mm
SKF RNU212ECJ Single Row Cylindrical Roller Bearing 72x110x22mm
Regular price
Rs. 6,347.17
Regular price
Sale price
Rs. 6,347.17
Taxes included.
In stock
Price Break
10+
Rs. 5,648.98
19+
Rs. 5,331.62
29+
Rs. 5,268.15
39+
Rs. 5,204.68
49+
Rs. 5,141.21
74+
Rs. 5,077.74
99+
Rs. 4,760.38
199+
Rs. 4,696.91
249+
Rs. 4,633.43
499+
Rs. 4,569.96
999+
Rs. 4,443.02
Description
Description
|
RNU Series Cylindrical roller Bearings: Typically found in applications where maximum shaft strength is required but a smaller footprint for the bearing is desirable, supplied without inner race these bearings are designed to run directly onto a hardened shaft , a good example of where these are found is in motorcycle crankshaft assemblies and gearboxes where compactness and strength are key factors in the design. Note: For a given RNU series bearing there may be 2 different inside diameters, The E series generally have a smaller inside diameter. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 72mm
- Outside Diameter:
- 110mm
- Width:
- 22mm
Technical
Technical
| d | 72mm |
|---|---|
| D | 110mm |
| C | 22mm |
| C1 | 4mm |
| Dynamic load | 108 kN |
| Static load | 102 kN |
| Fatigue load limit Pu | 13.4 kN |
| Reference speed | 6700rpm |
| Limiting speed | 7500rpm |
| r1,2min | 1.5mm |
| Weight | 0.83kg |
