SKU: RNA6903-EU

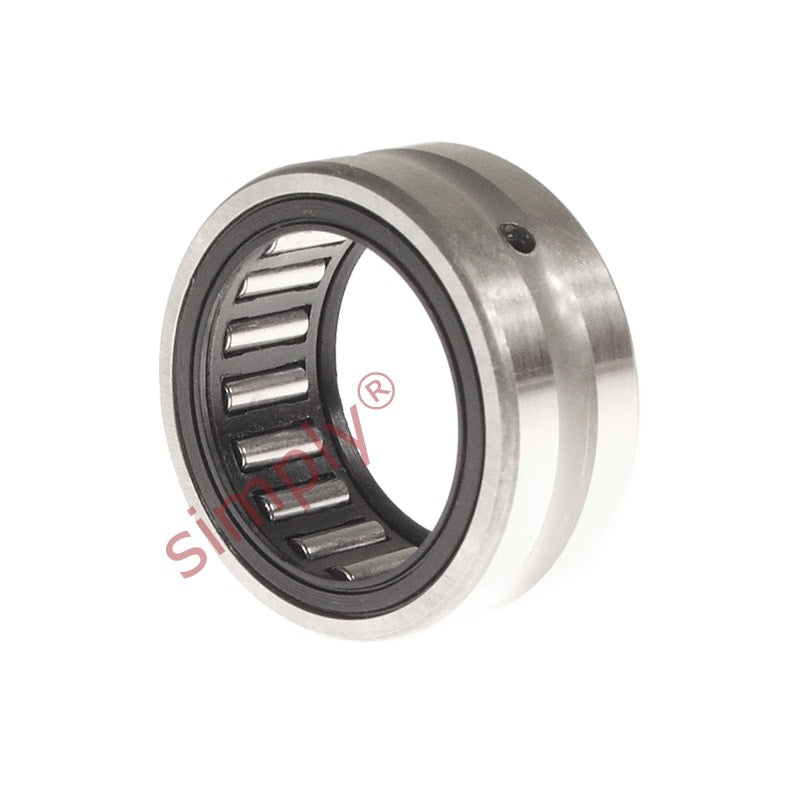

RNA6903 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 22x30x23mm
RNA6903 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 22x30x23mm
Regular price
Rs. 1,848.59
Regular price
Sale price
Rs. 1,848.59
Taxes included.
In stock
Price Break
10+
Rs. 1,645.25
19+
Rs. 1,552.82
29+
Rs. 1,534.33
39+
Rs. 1,515.84
49+
Rs. 1,497.36
74+
Rs. 1,478.87
99+
Rs. 1,386.44
199+
Rs. 1,367.96
249+
Rs. 1,349.47
499+
Rs. 1,330.98
999+
Rs. 1,294.01
Description
Description
|
Budget Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 30mm
- Width:
- 23mm
Technical
Technical
| Fw | 22mm |
|---|---|
| D | 30mm |
| C | 23mm |
| Dynamic load C | 18700 N |
| Static load Co | 30500 N |
| Fatigue load limit Pu | 3900 N |
| Speed in grease | 12000 rpm |
| Speed in oil | 18000 rpm |
| r1r2 | 0.3mm |
| Da max | 28mm |
| ra max | 0.3mm |
| Seal | G/SD22x30x4 |
| Weight | 42 g |
