SKU: RNA69/22-MB

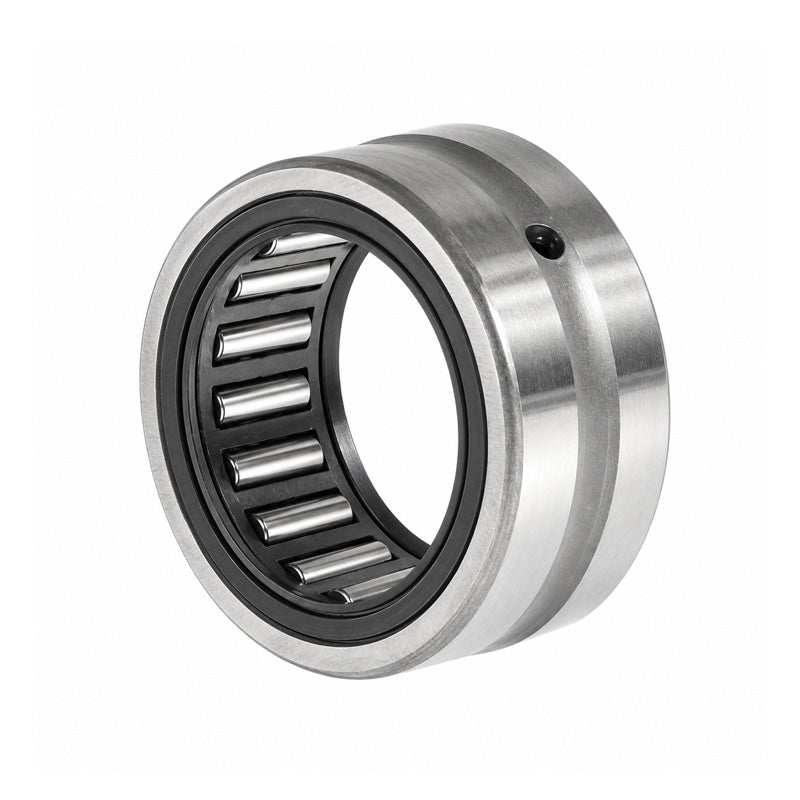

Major Brand RNA69/22 Needle Roller Bearing With Flanges without Shaft Sleeve 28x39x30mm
Major Brand RNA69/22 Needle Roller Bearing With Flanges without Shaft Sleeve 28x39x30mm
Regular price
Rs. 3,838.42
ex VAT
Regular price
Sale price
Rs. 3,838.42
ex VAT
In stock
Price Break
10+
Rs. 3,416.19
19+
Rs. 3,224.27
29+
Rs. 3,185.89
39+
Rs. 3,147.50
49+
Rs. 3,109.12
74+
Rs. 3,070.74
99+
Rs. 2,878.82
199+
Rs. 2,840.43
249+
Rs. 2,802.05
499+
Rs. 2,763.66
999+
Rs. 2,686.89
Couldn't load pickup availability
Description
Description
|
Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 28mm
- Outside Diameter:
- 39mm
- Width:
- 30mm
Technical
Technical
| Fw | 28mm |
|---|---|
| D | 39mm |
| C | 30mm |
| Dynamic load | 36900 N |
| Static load | 57000 N |
| Fatigue load limit Pu | 7500 N |
| Speed in grease | 9000 rpm |
| Speed in oil | 14000 rpm |
| r1r2 | 0.3mm |
| Da max | 37mm |
| ra max | 0.3mm |
| Weight | 98 g |
