SKU: RNA4924-EU

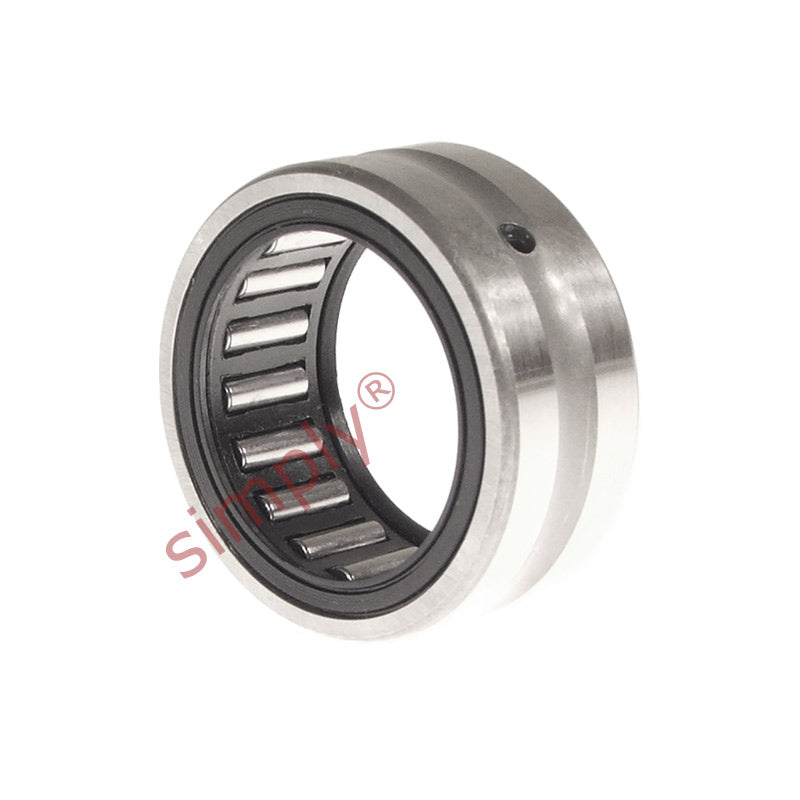

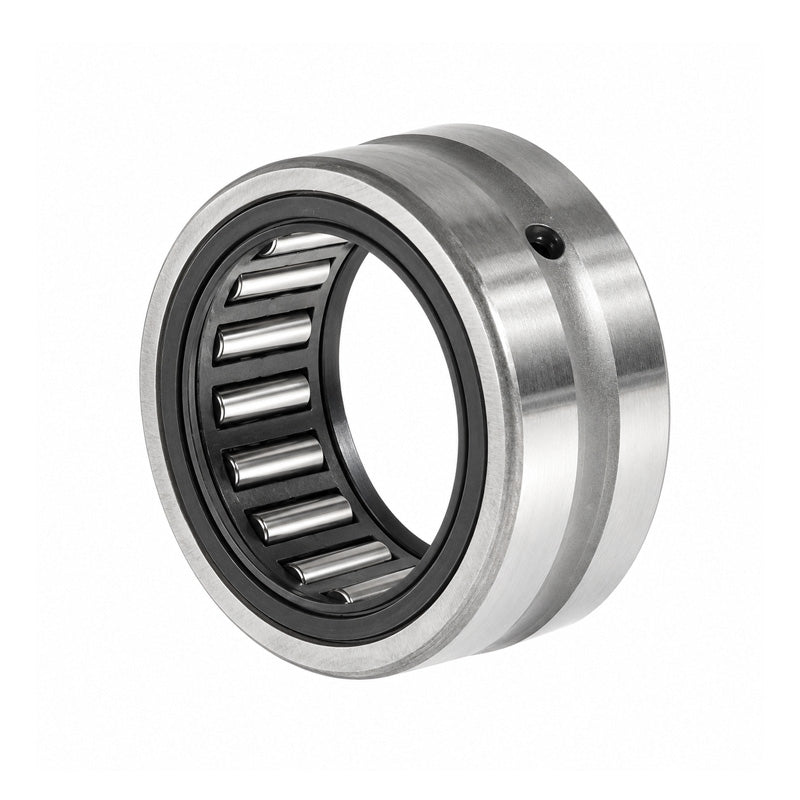

RNA4924 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 135x165x45mm
RNA4924 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 135x165x45mm
Regular price
Rs. 24,399.10
Regular price
Sale price
Rs. 24,399.10
Taxes included.
In stock
Price Break
10+
Rs. 21,715.20
19+
Rs. 20,495.24
29+
Rs. 20,251.25
39+
Rs. 20,007.26
49+
Rs. 19,763.27
74+
Rs. 19,519.28
99+
Rs. 18,299.33
199+
Rs. 18,055.33
249+
Rs. 17,811.34
499+
Rs. 17,567.35
999+
Rs. 17,079.37
Description
Description
|
Budget Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 135mm
- Outside Diameter:
- 165mm
- Width:
- 45mm
Technical
Technical
| Fw | 135mm |
|---|---|
| D | 165mm |
| C | 45mm |
| Dynamic load C | 176000 N |
| Static load Co | 405000 N |
| Fatigue load limit Pu | 47500 N |
| Speed in grease | 1900 rpm |
| Speed in oil | 3000 rpm |
| r1r2 | 1.1mm |
| Da max | 158.5mm |
| ra max | 1mm |
| Weight | 1850 g |
