SKU: RNA2210.2RS-EU

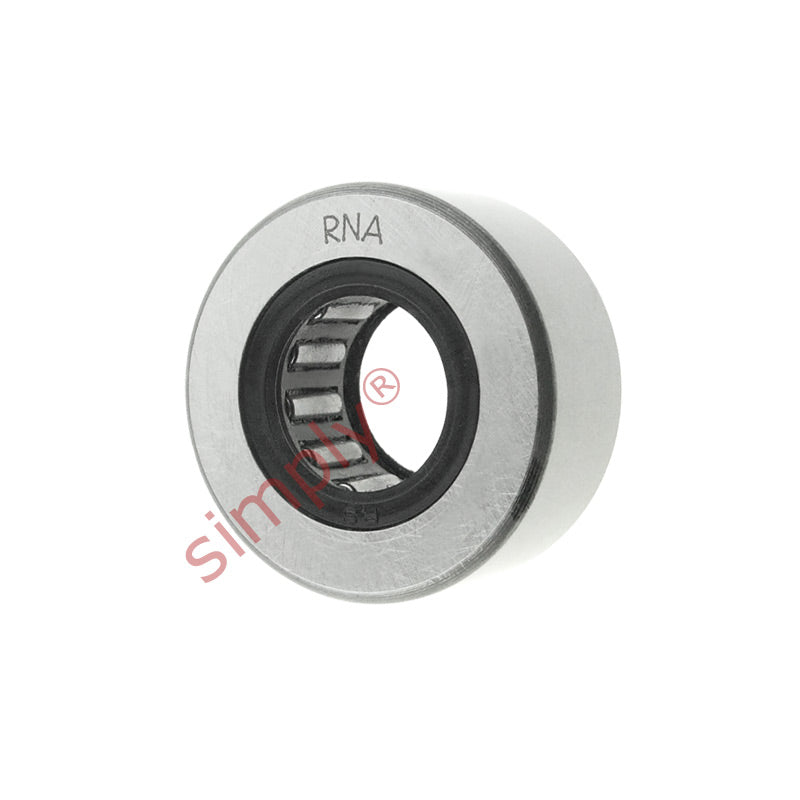

RNA22102RS Budget Support Roller with 2 Rubber Seals 58x90x22.7mm
RNA22102RS Budget Support Roller with 2 Rubber Seals 58x90x22.7mm
Regular price
Rs. 9,785.75
Regular price
Sale price
Rs. 9,785.75
Taxes included.
Equivalent to: RNA2210LL
In stock
Price Break
10+
Rs. 8,709.32
19+
Rs. 8,220.03
29+
Rs. 8,122.17
39+
Rs. 8,024.32
49+
Rs. 7,926.46
74+
Rs. 7,828.60
99+
Rs. 7,339.31
199+
Rs. 7,241.46
249+
Rs. 7,143.60
499+
Rs. 7,045.74
999+
Rs. 6,850.03
Description
Description
Budget Support Rollers without Axial Guidance: Designed for applications where the associated components can be designed to to provide the axial guidance. The support rollers without inner rings are intended for arrangements where the pin or shaft can be hardened and ground. |
Equivalent: RNA2210LL
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 58mm
- Outside Diameter:
- 90mm
- Width:
- 22.7mm
- Seals / Shields:
- Rubber Seals
Technical
Technical
| D | 90mm |
|---|---|
| C | 22.7mm |
| Fw | 58mm |
| D1 | 68mm |
| r min | 1.1mm |
| Speed rating | 650 rpm |
| Dynamic load | 27000 N |
| Static load | 41500 N |
| Fatigue load limit Pu | 5200 N |
| Min radial force dynamic load | 36500 N |
| Max radial force dynamic load | 52000 N |
| Weight | 560 g |
