SKU: RNA2208LL/3AS-NTN

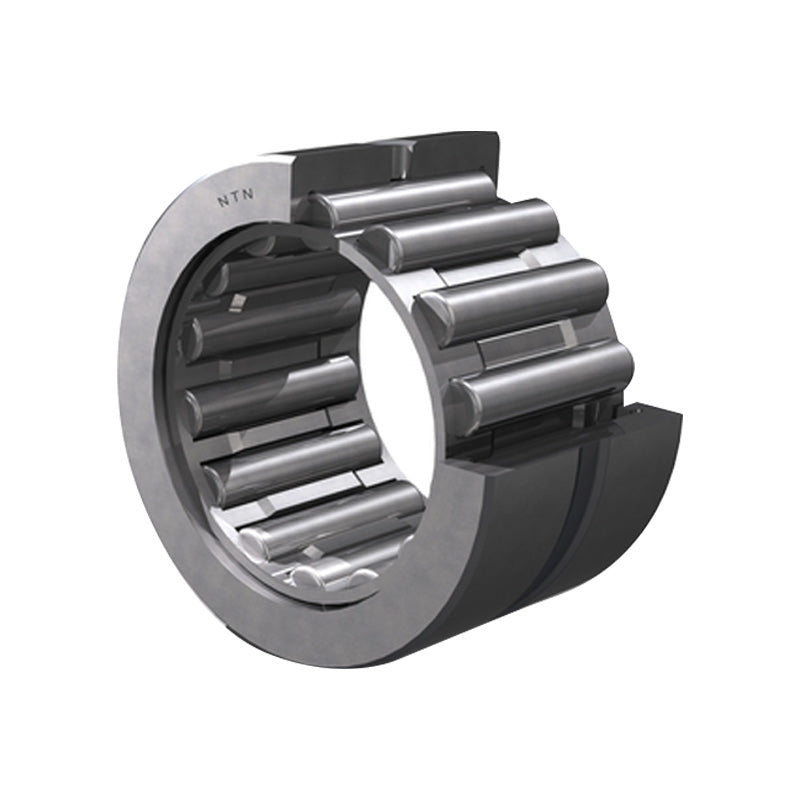

NTN RNA2208LL/3AS Yoke Type Track Roller without Inner Race 48x80x22.7mm - Allow 2-3 Days
NTN RNA2208LL/3AS Yoke Type Track Roller without Inner Race 48x80x22.7mm - Allow 2-3 Days
Regular price
Rs. 8,508.13
Regular price
Sale price
Rs. 8,508.13
Taxes included.
In stock
Price Break
5+
Rs. 8,423.05
10+
Rs. 8,082.72
20+
Rs. 7,912.56
50+
Rs. 7,657.32
100+
Rs. 7,487.15
500+
Rs. 7,061.75
1000+
Rs. 5,955.69
Description
Description
NTN RNA Type Track Rollers: These track rollers are high-performance, non-separable needle roller bearings designed for applications requiring high load capacity and smooth motion. Built with precision-engineered components, these rollers offer excellent rigidity, low friction, and long service life. Ideal for cam mechanisms, conveyors, and linear motion systems, NTN RNA Track Rollers deliver reliable performance even in demanding industrial environments.
Benefits: High load capacity, durable and reliable, easy installation
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 48mm
- Outside Diameter:
- 80mm
- Width:
- 22.7mm
Technical
Technical
| Fw - Under roller diameter | 48mm |
|---|---|
| D - Outside diameter | 80mm |
| C - Outer ring width | 22.7mm |
| e - Inlet diameter | 57mm |
| R - Track roller radius | 500mm |
| Bearing with/without cage | With |
| Precision class | P0 |
| Cr - Dynamic load rating | 28.4 kN |
| C0r - Static load rating | 55 kN |
| Track load capacity | 9.8 kN |
| N - Grease lubrication limit speed | 3100 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
