SKU: RNA0-25X35X17-NTN

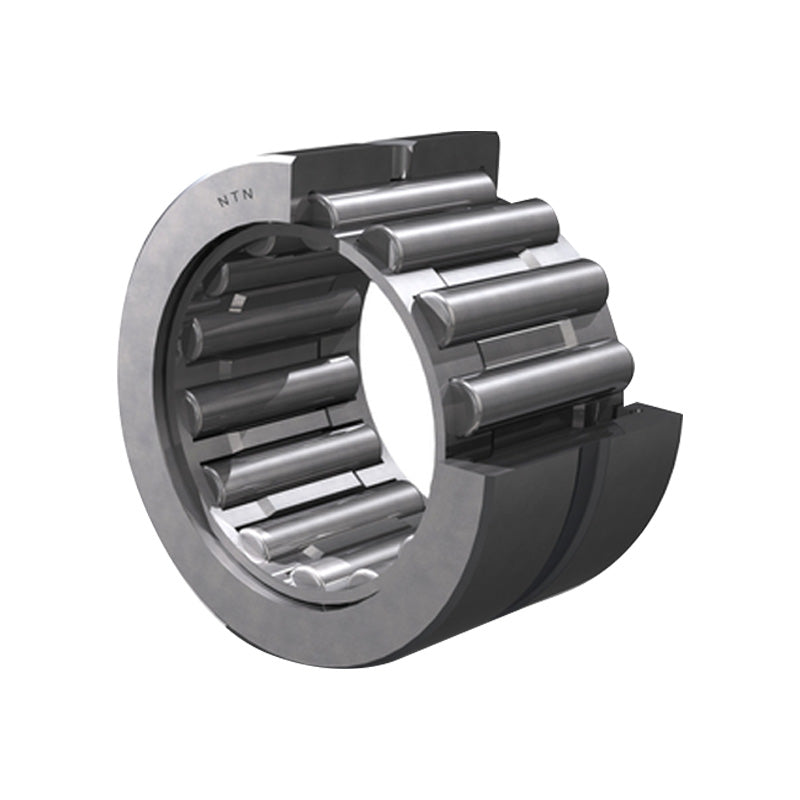

NTN RNA0-25X35X17 Seperable Machined Needle Roller Bearing no Shaft Sleeve 25x35x17mm - Allow 2-3 Days

Name: NTN RNA0-25X35X17 Seperable Machined Needle Roller Bearing no Shaft Sleeve 25x35x17mm - Allow 2-3 Days
Brand: NTN
SKU: RNA0-25X35X17-NTN
Price: 1983.01 INR
Availability: InStock

Rs. 1,983.01

Sale Sold out

Taxes included.

In stock

Price Break

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

NTN Needle Roller Bearings: These bearings deliver exceptional performance in compact applications, offering high load capacity, low friction, and long service life. Precision-engineered with high-quality needle rollers and advanced cage designs, these bearings ensure smooth, efficient operation even under heavy radial loads. Ideal for automotive transmissions, industrial machinery, power tools, and robotic systems, NTN bearings are trusted worldwide for their durability, accuracy, and consistent reliability in demanding environments.
Benefits: High performance, economical, rigid machined outer ring

Brand / Quality:: NTN - High Quality
Inside Diameter:: 25mm
Outside Diameter:: 35mm
Width:: 17mm

Technical

Fw - Under rollers diameter	25mm
D - Outside diameter	35mm
C - Width of bearing, drawn cup or outer ring	17mm
E - Upper roller diameter	29mm
rs - Minimum fillet radius	0.3mm
Lubrication hole on outer ring?	No
Radial clearance class	CN
Precision class	P0
Cr - Dynamic load rating	14.2 kN
C0r - Static load rating	24 kN
N - Grease lubrication limit speed	11000 tr/min
N - Oil lubrication limit speed	16000 tr/min
Tmin - Minimum operating temperature	-20 Deg C
Tmax - Maximum operating temperature	+120 Deg C
db - Inner ring shoulder diameter	28.4mm
Da max - Outer ring maximum shoulder diameter	33mm
Db max - Outer ring maximum smooth shaft shoulder diameter	25.6mm
ras max - Maximum shaft & housing fillet radius	0.3mm
