SKU: RM35FF-MB

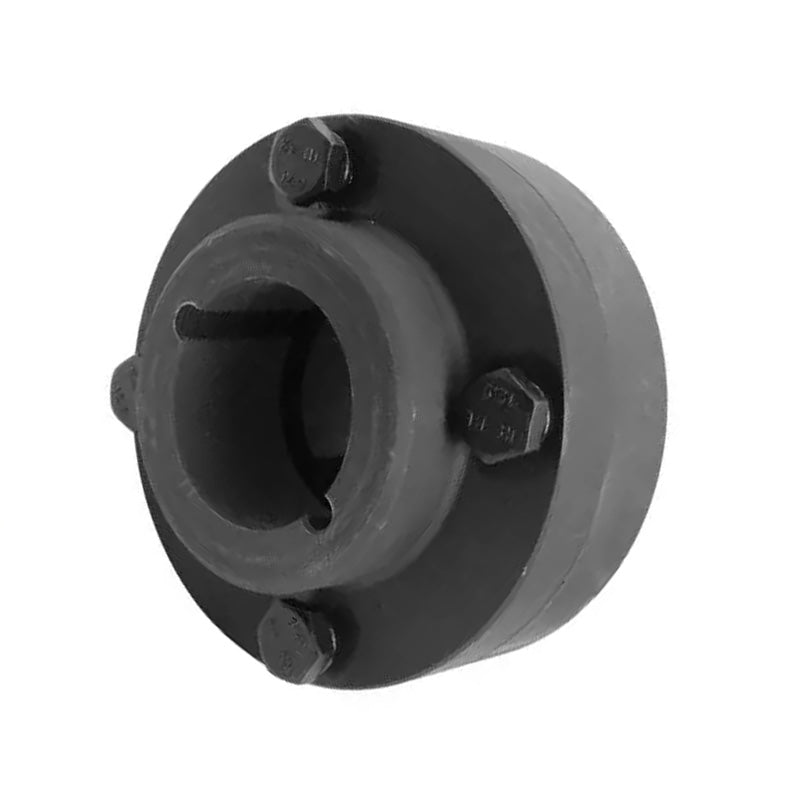

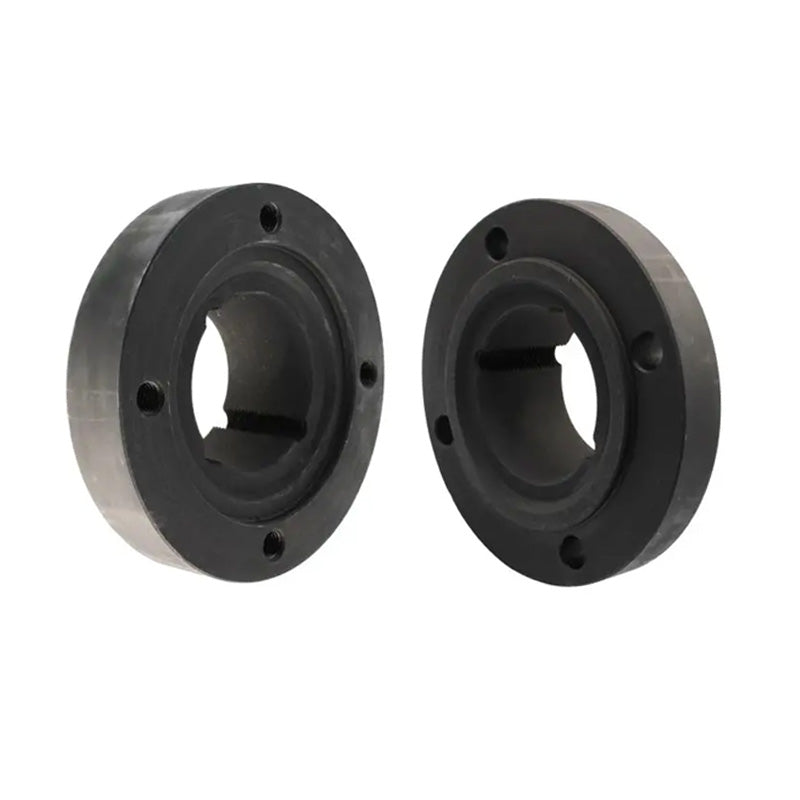

Major Brand RM35FF Rigid Shaft Coupling with Inner Taper Bores Max Bush Bore 100mm / 4 inch
Major Brand RM35FF Rigid Shaft Coupling with Inner Taper Bores Max Bush Bore 100mm / 4 inch
Regular price
Rs. 46,019.57
ex VAT
Regular price
Sale price
Rs. 46,019.57
ex VAT
Equivalent to: RM35FF-3525
In stock
Price Break
10+
Rs. 40,957.42
19+
Rs. 38,656.44
29+
Rs. 38,196.24
39+
Rs. 37,736.05
49+
Rs. 37,275.85
74+
Rs. 36,815.66
99+
Rs. 34,514.68
199+
Rs. 34,054.48
249+
Rs. 33,594.29
499+
Rs. 33,134.09
999+
Rs. 32,213.70
Couldn't load pickup availability
Description
Description
Major Branded Rigid Shaft Coupling with Inner Taper Bores: Taper Bore Rigid Couplings provide a convenient method of rigidly connecting ends of shafts. Supplied as a complete coupling assembly except for the tapered locking bush (link below). The large diameter of the tape bore is on the flange side (FF).
Equivalent: RM35FF-3525
- Brand / Quality:
- Major Brand - High Quality
- Max Bore:
- 100mm or 4 inch
Technical
Technical
| Bush | 3525<a href="advanced_search_result.php?keywords=taper+lock+bush+3525"> [Click Here]</a> |
|---|---|
| Max Bore Size | 100mm |
| Inch | 4 inch |
| A | 248mm |
| C | 75mm |
| D | 178mm |
| E | 65mm |
| F Nominal | 178mm |
| G Nominal | 213mm |
| H ♣ | 7mm |
| J ♠ | 67mm |
| L | 137mm |
| Mass ♥ | 34kg |
