SKU: RJUM-03-10

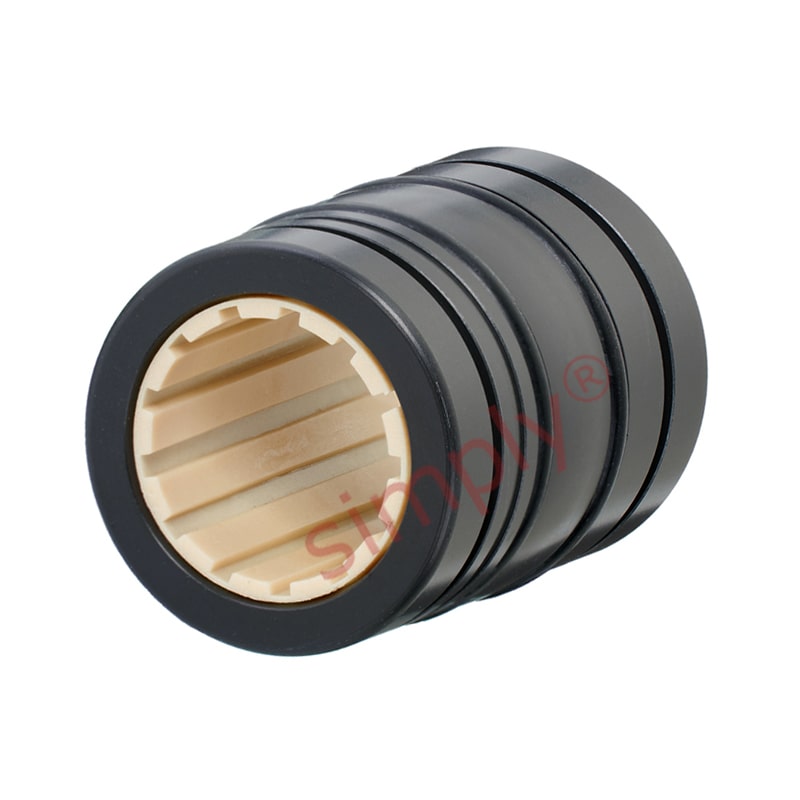

Igus drylin R RJUM-03-10 Linear Slide Bearing
Igus drylin R RJUM-03-10 Linear Slide Bearing
Regular price
Rs. 3,839.28
Regular price
Sale price
Rs. 3,839.28
Taxes included.
In stock
Price Break
10+
Rs. 3,416.96
19+
Rs. 3,225.00
29+
Rs. 3,186.60
39+
Rs. 3,148.21
49+
Rs. 3,109.82
74+
Rs. 3,071.42
99+
Rs. 2,879.46
199+
Rs. 2,841.07
249+
Rs. 2,802.67
499+
Rs. 2,764.28
999+
Rs. 2,687.50
Description
Description
RJUM Linear Silde Bearings: These metric bearings are closed iglidur® J linear bearings. These bearings provide a long service life due to the manufactured material, polymer.
Benefits: Lubricant-free, long service life, reduce risk of contamination.
Benefits: Lubricant-free, long service life, reduce risk of contamination.
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 18.8mm
- Length:
- 28.9mm

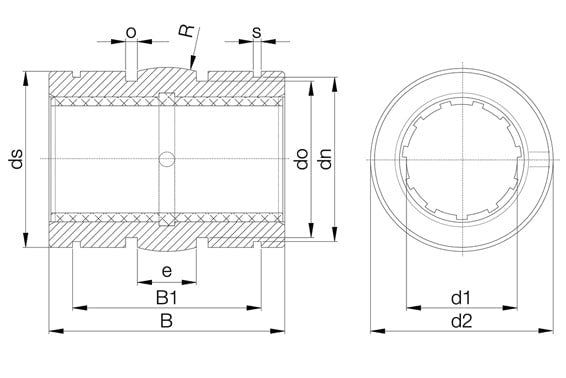

Technical
Technical
| Ø d1 | 10mm |
|---|---|
| Ø d2 | 18.8mm |
| Housing bore | 19mm |
| B | 28.9mm |
| B1 | 21.8mm |
| s | 1.3mm |
| Ø dn | 17.5mm |
| Ø ds | 18.5mm |
| Ø do | 15.4mm |
| o | 1.86mm |
| e | 5mm |
| R | 13mm |
| d1-Tolerance | +0.03 +0.0088mm |
| d2-Tolerance | H8 |
| Housing bore tolerance | H7 |
| B-Tolerance | h10 |
| b1-Tolerance | H10 |
| s-Tolerance | H10 |
| dn-Tolerance | h10 |
| ds-Tolerance | h10 |
| o-Tolerance | +0.1mm |
| Material sliding element | iglidur® J |
| Fmax. dynamic, P = 5 MPa | 725N |
| Fmax. static, P = 35 MPa | 5075 N |
