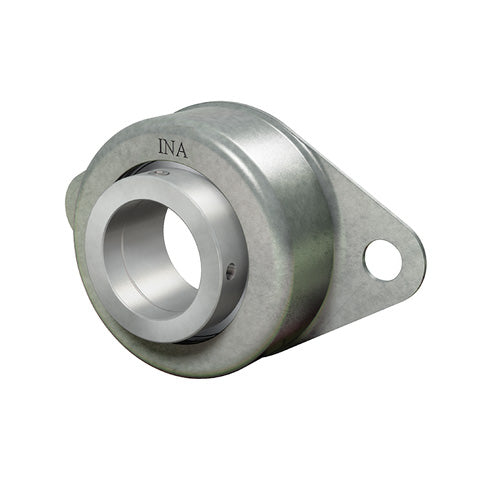

INA RCSMF25XL Two Bolt Sheet Steel Oval Housing with Eccentric Collar Insert with Rubber Interliner 25mm Bore
INA RCSMF25XL Two Bolt Sheet Steel Oval Housing with Eccentric Collar Insert with Rubber Interliner 25mm Bore
Regular price
Rs. 5,392.15
Regular price
Sale price
Rs. 5,392.15
Taxes included.
In stock
Price Break
10+
Rs. 4,799.01
19+
Rs. 4,529.41
29+
Rs. 4,475.48
39+
Rs. 4,421.56
49+
Rs. 4,367.64
74+
Rs. 4,313.72
99+
Rs. 4,044.11
199+
Rs. 3,990.19
249+
Rs. 3,936.27
499+
Rs. 3,882.35
999+
Rs. 3,774.51
Description
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This sheet steel housing is a two-piece unit with a moderate load carrying capacity. The housings are screw mounted on the adjacent construction. On the bearing outer ring, there is a rubber interliner which absorbs shock and vibrations. This reduces running noise. Benefits: Suitable for a lightweight construction, eccentric collar, reduced running noise. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Style:
- RCSMF
- Bolt Hole Centres:
- 92mm
Technical
Technical
| d | 25mm |
|---|---|
| H | 114mm |
| U | 36.2mm |
| A | 27mm |
| A2 | 12.7mm |
| B1 | 31mm |
| d3 max | 37.5mm |
| J | 92mm |
| L | 70mm |
| N | 10.5mm |
| S | 1.5mm |
| V | 68mm |
| Mass | 0.33 kg |
| Load carrying capacity of housing Cor G | 1400 N |
| Basic dynamic load rating Cr | 14900 N |
| Basic static load rating Cor | 7800 N |
| Designation of housing | FLAN65-RCSMF |
| Designation of bearing | RAE25-XL-NPP-FA106 |
| Designation of rubber interliner | GRG.RCSM52/65 |
