SKU: RCJTY25-XL-N-INA

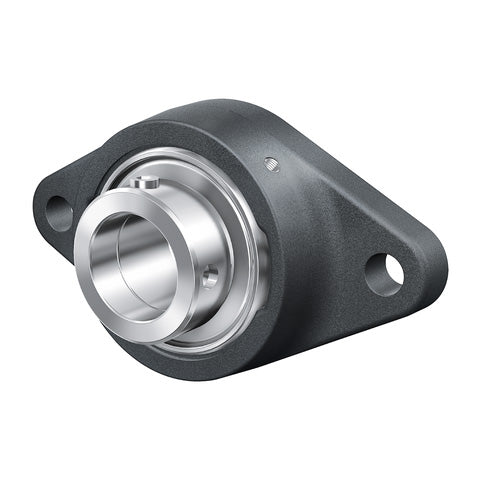

INA RCJTY25XLN Two Bolt Cast Iron Oval Housing with Grub Screw Insert 25mm Bore
INA RCJTY25XLN Two Bolt Cast Iron Oval Housing with Grub Screw Insert 25mm Bore
Regular price
Rs. 4,388.48
Regular price
Sale price
Rs. 4,388.48
Taxes included.
In stock
Price Break
10+
Rs. 3,905.75
19+
Rs. 3,686.32
29+
Rs. 3,642.44
39+
Rs. 3,598.55
49+
Rs. 3,554.67
74+
Rs. 3,510.78
99+
Rs. 3,291.36
199+
Rs. 3,247.48
249+
Rs. 3,203.59
499+
Rs. 3,159.71
999+
Rs. 3,071.94
Description
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, grub screw fixing, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Style:
- RCJTY
- Bolt Hole Centres:
- 99mm
Technical
Technical
| d | 25mm |
|---|---|
| H | 124mm |
| U | 38.8mm |
| A | 26.5mm |
| A1 | 11mm |
| A2 | 19mm |
| B | 34.1mm |
| J | 99mm |
| L | 70mm |
| N | 11.5mm |
| Q | M6mm |
| V | 70mm |
| Mass | 0.57 kg |
| Basic dynamic load rating Cr | 14900 N |
| Basic static load rating Cor | 7800 N |
| Designation of housing | CJT05 |
| Designation of bearing | GYE25-XL-KRR-B |
| Bearing end cap, closed design (to be ordered separately) | KASK05 |
