SKU: RAXZ512-MB
Major Brand RAXZ512 Combined Bearing with Incorporated Thrust Plate 12x21x22mm Allow 2-3 Days
Major Brand RAXZ512 Combined Bearing with Incorporated Thrust Plate 12x21x22mm Allow 2-3 Days
Regular price
Rs. 35,909.26
Regular price
Sale price
Rs. 35,909.26
Taxes included.
In stock
Price Break
10+
Rs. 31,959.24
19+
Rs. 30,163.78
29+
Rs. 29,804.69
39+
Rs. 29,445.59
49+
Rs. 29,086.50
74+
Rs. 28,727.41
99+
Rs. 26,931.95
199+
Rs. 26,572.85
249+
Rs. 26,213.76
499+
Rs. 25,854.67
999+
Rs. 25,136.48
Description
Description
Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 21mm
- Width:
- 22mm

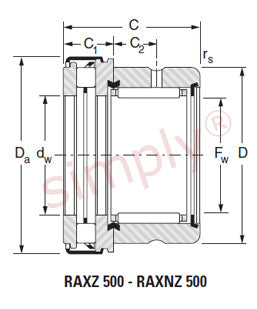

Technical
Technical
| Fw | 12mm |
|---|---|
| D | 21mm |
| C | 22mm |
| da | 12mm |
| Da | 26.4mm |
| C1 | 8mm |
| C2 | 6mm |
| rs min | 0.35mm |
| Radial dynamic load | 6.8 kN |
| Radial static load | 9 kN |
| Axial dynamic load | 12.7 kN |
| Axial static load | 29.5 kN |
| Speed rating | 13000 rpm |
| Weight | 0.039 kg |
