SKU: RAXPZ420-NADELLA

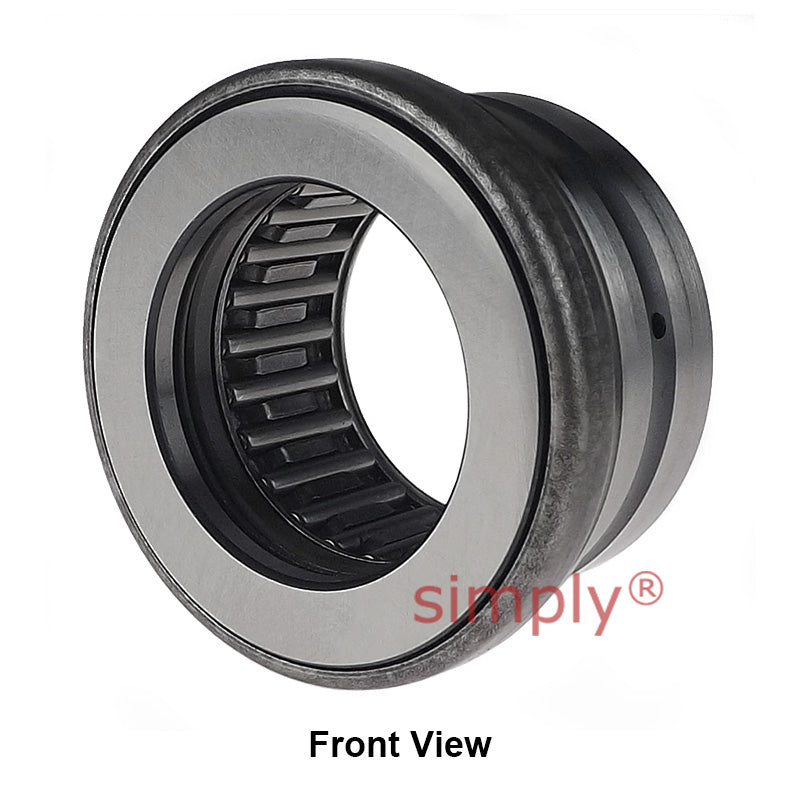

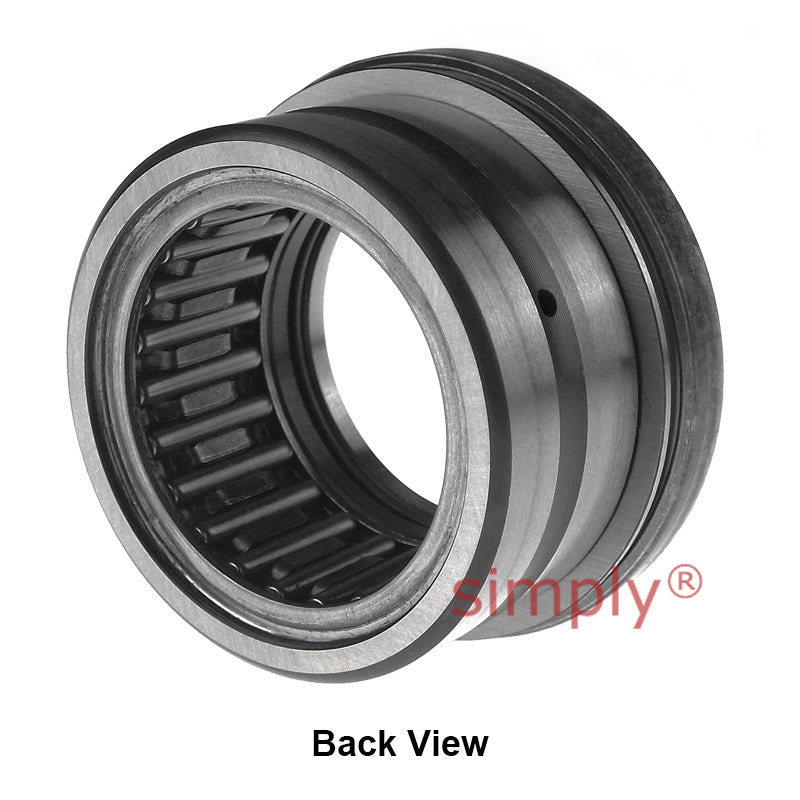

Nadella RAXPZ 420 Combined Bearing with Incorporated Thrust Plate 20x30x27mm Allow 2-3 Days
Nadella RAXPZ 420 Combined Bearing with Incorporated Thrust Plate 20x30x27mm Allow 2-3 Days
Regular price
Rs. 39,845.85
ex VAT
Regular price
Sale price
Rs. 39,845.85
ex VAT
In stock
Price Break
5+
Rs. 39,447.39
10+
Rs. 37,853.56
20+
Rs. 37,056.64
50+
Rs. 35,861.27
100+
Rs. 35,064.35
500+
Rs. 33,072.06
1000+
Rs. 27,892.10
Couldn't load pickup availability
Description
Description
Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines. |
- Brand / Quality:
- Nadella - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 30mm
- Width:
- 27mm
Technical
Technical
| Fw | 20mm |
|---|---|
| D | 30mm |
| C | 27mm |
| da | 20mm |
| Da | 35.4mm |
| C1 | 9mm |
| C2 | 9mm |
| rs min | 0.85mm |
| Radial dynamic load | 14.8 kN |
| Radial static load | 23.7 kN |
| Axial dynamic load | 11.8 kN |
| Axial static load | 39 kN |
| Speed rating | 9000 rpm |
| Weight | 0.079 kg |
