SKU: RAXPZ420-MB
Major Brand RAXPZ 420 Combined Bearing with Incorporated Thrust Plate 20x30x27mm Allow 2-3 Days
Major Brand RAXPZ 420 Combined Bearing with Incorporated Thrust Plate 20x30x27mm Allow 2-3 Days
Regular price
Rs. 37,211.22
Regular price
Sale price
Rs. 37,211.22
Taxes included.
In stock
Price Break
10+
Rs. 33,117.99
19+
Rs. 31,257.42
29+
Rs. 30,885.31
39+
Rs. 30,513.20
49+
Rs. 30,141.09
74+
Rs. 29,768.98
99+
Rs. 27,908.42
199+
Rs. 27,536.30
249+
Rs. 27,164.19
499+
Rs. 26,792.08
999+
Rs. 26,047.85
Description
Description
Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 30mm
- Width:
- 27mm

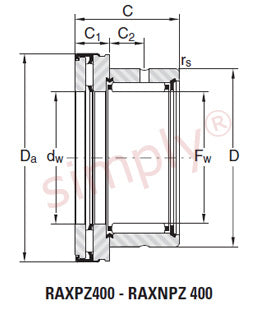

Technical
Technical
| Fw | 20mm |
|---|---|
| D | 30mm |
| C | 27mm |
| da | 20mm |
| Da | 35.4mm |
| C1 | 9mm |
| C2 | 9mm |
| rs min | 0.85mm |
| Radial dynamic load | 14.8 kN |
| Radial static load | 23.7 kN |
| Axial dynamic load | 11.8 kN |
| Axial static load | 39 kN |
| Speed rating | 9000 rpm |
| Weight | 0.079 kg |
