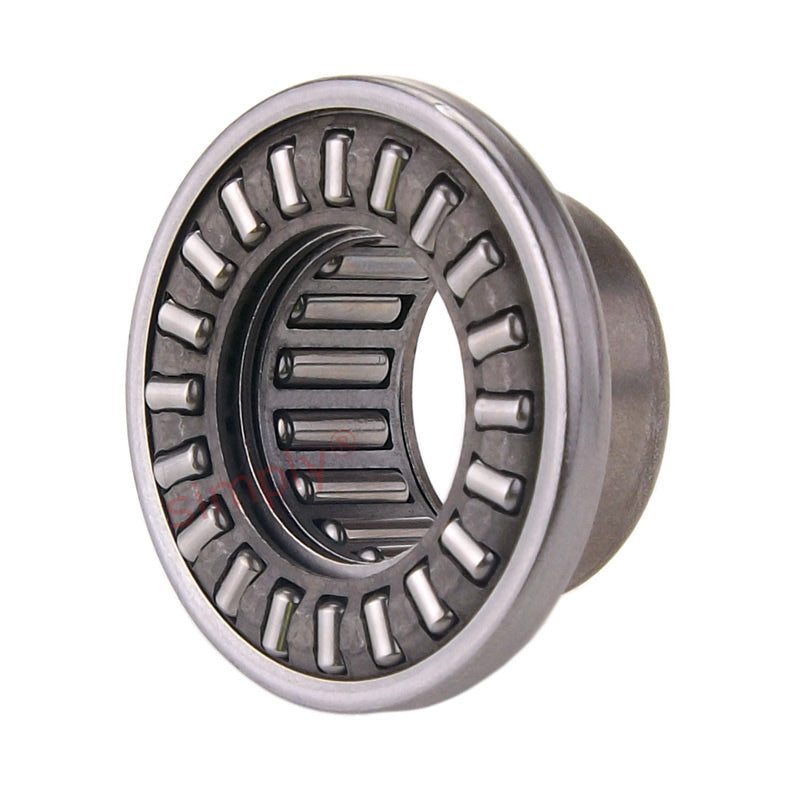

• Major Brand RAX 718 Open Needle Thrust Bearing 18x24x18.2mm
1 1

SKU: RAX718-MB

Major Brand RAX 718 Open Needle Thrust Bearing 18x24x18.2mm

Major Brand RAX 718 Open Needle Thrust Bearing 18x24x18.2mm
Rs. 4,741.82
Rs. 4,741.82
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 4,220.22
19+ Rs. 3,983.13
29+ Rs. 3,935.71
39+ Rs. 3,888.29
49+ Rs. 3,840.87
74+ Rs. 3,793.46
99+ Rs. 3,556.37
199+ Rs. 3,508.95
249+ Rs. 3,461.53
499+ Rs. 3,414.11
999+ Rs. 3,319.27
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Nadella Combined Needle Roller Bearings : Combined bearings type RAX possess a one piece outer ring formed from thin sheet steel accurately controlled and hardened by suitable heat treatment. The shape of this outer ring prevents weakness in the area between the axial component and the radial component, even after the latter has been tightly fitted into a housing.
Benefits: Cost effective, easy to use and can be fitted rapidly
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
18mm
Outside Diameter:
24mm
Width:
18.2mm
Technical
Fw 18mm
D 24mm
C 18.2mm
Da 33.5mm
Eb 21mm
Ea 28.6mm
C1 4.2mm
L 17.2
Radial dynamic load 11.5
Radial static load 17.7 kN
Axial dynamic load 8 kN
Axial static load 23 kN
Limit loads radial 5.8 kN
Limit loads axial 16 kN
Speed rating 10000 rpm
Housing 24mm
GO plug-gauges 18.009mm
NO-GO plug-gauges 18.035mm
Inner ring JR 15x18x16.5
Weight 0.027 kg
