SKU: RAX570-MB

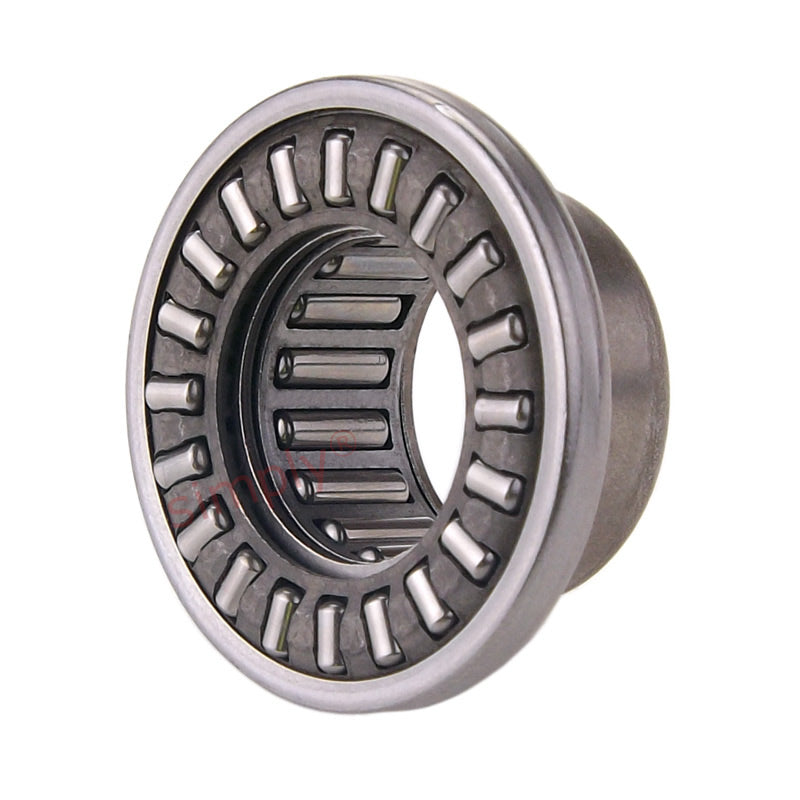

Major Brand RAX 570 Needle Combined Bearing with Needle Thrust Cage 70x85x32mm Allow 2-3 Days
Major Brand RAX 570 Needle Combined Bearing with Needle Thrust Cage 70x85x32mm Allow 2-3 Days
Regular price
Rs. 94,895.19
Regular price
Sale price
Rs. 94,895.19
Taxes included.
In stock
Price Break
10+
Rs. 84,456.72
19+
Rs. 79,711.96
29+
Rs. 78,763.01
39+
Rs. 77,814.06
49+
Rs. 76,865.10
74+
Rs. 75,916.15
99+
Rs. 71,171.39
199+
Rs. 70,222.44
249+
Rs. 69,273.49
499+
Rs. 68,324.54
999+
Rs. 66,426.63
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 32mm
- Width:
- 85mm
Technical
Technical
| Fw | 70mm |
|---|---|
| C | 32mm |
| D | 85mm |
| Da | 95.4mm |
| Eb | 73.5mm |
| Ea | 89.5mm |
| C1 | 11mm |
| C2 | 11mm |
| rs min | 1.3mm |
| Radial dynamic load | 36.1 kN |
| Radial static load | 84.7 kN |
| Axial dynamic load | 77 kN |
| Axial static load | 295 kN |
| Speed rating | 3000 rpm |
| Inner ring | JR 60x70x25 kN |
| Weight | 0.435 kg |
