SKU: RAX560-MB

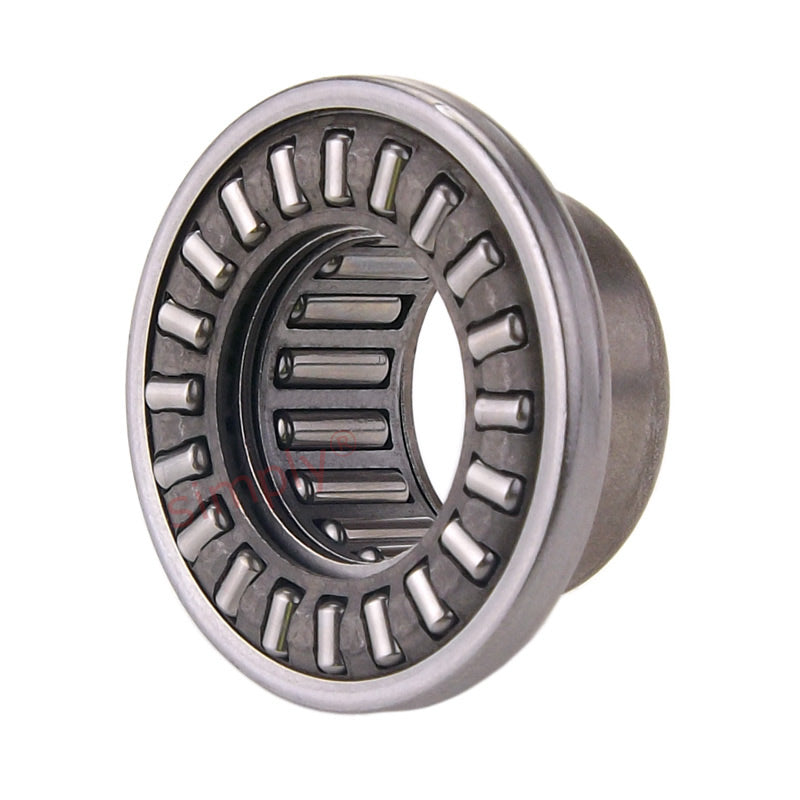

Major Brand RAX 560 Needle Combined Bearing with Needle Thrust Cage 60x72x32mm Allow 2-3 Days
Major Brand RAX 560 Needle Combined Bearing with Needle Thrust Cage 60x72x32mm Allow 2-3 Days
Regular price
Rs. 72,408.70
Regular price
Sale price
Rs. 72,408.70
Taxes included.
In stock
Price Break
10+
Rs. 64,443.74
19+
Rs. 60,823.31
29+
Rs. 60,099.22
39+
Rs. 59,375.13
49+
Rs. 58,651.05
74+
Rs. 57,926.96
99+
Rs. 54,306.53
199+
Rs. 53,582.44
249+
Rs. 52,858.35
499+
Rs. 52,134.26
999+
Rs. 50,686.09
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 32mm
- Width:
- 72mm
Technical
Technical
| Fw | 60mm |
|---|---|
| C | 32mm |
| D | 72mm |
| Da | 85.4mm |
| Eb | 63.5mm |
| Ea | 79.5mm |
| C1 | 11mm |
| C2 | 11mm |
| rs min | 1.3mm |
| Radial dynamic load | 31.9 kN |
| Radial static load | 78.1 kN |
| Axial dynamic load | 71 kN |
| Axial static load | 255 kN |
| Speed rating | 3500 rpm |
| Inner ring | JR 55x60x25 kN |
| Weight | 0.327 kg |
