SKU: RAX535-MB

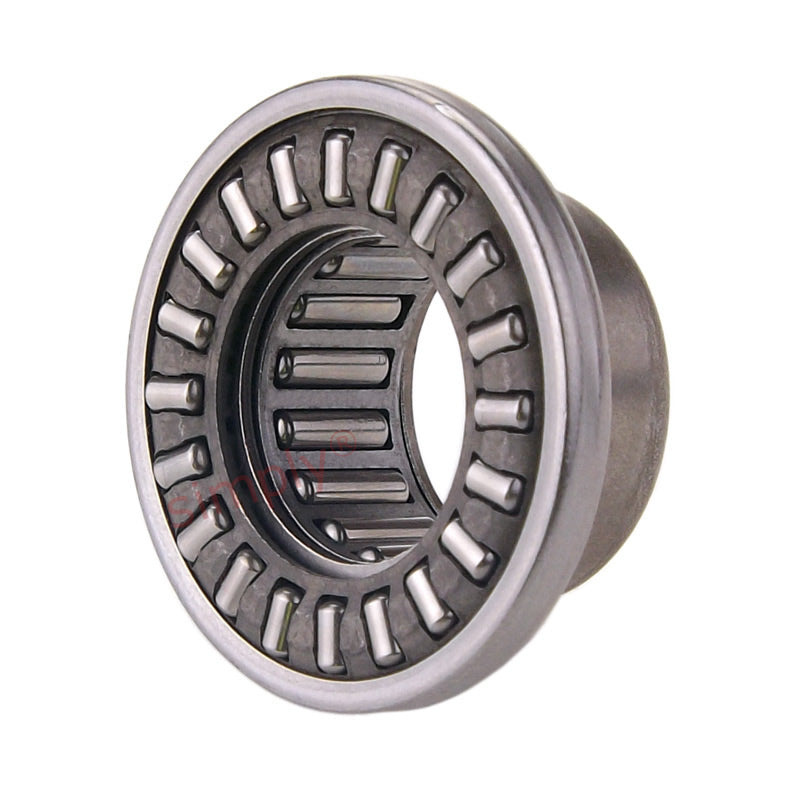

Major Brand RAX 535 Needle Combined Bearing with Needle Thrust Cage 35x47x27mm Allow 2-3 Days
Major Brand RAX 535 Needle Combined Bearing with Needle Thrust Cage 35x47x27mm Allow 2-3 Days
Regular price
Rs. 44,435.31
Regular price
Sale price
Rs. 44,435.31
Taxes included.
In stock
Price Break
10+
Rs. 39,547.43
19+
Rs. 37,325.66
29+
Rs. 36,881.31
39+
Rs. 36,436.95
49+
Rs. 35,992.60
74+
Rs. 35,548.25
99+
Rs. 33,326.48
199+
Rs. 32,882.13
249+
Rs. 32,437.78
499+
Rs. 31,993.42
999+
Rs. 31,104.72
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 27mm
- Width:
- 47mm
Technical
Technical
| Fw | 35mm |
|---|---|
| C | 27mm |
| D | 47mm |
| Da | 53.4mm |
| Eb | 37.8mm |
| Ea | 47.8mm |
| C1 | 9mm |
| C2 | 9mm |
| rs min | 0.85mm |
| Radial dynamic load | 22.1 kN |
| Radial static load | 40.8 kN |
| Axial dynamic load | 33.8 kN |
| Axial static load | 94 kN |
| Speed rating | 5500 rpm |
| Inner ring | JR 30x35x20 kN |
| Weight | 0.146 kg |
