SKU: RAX515-MB

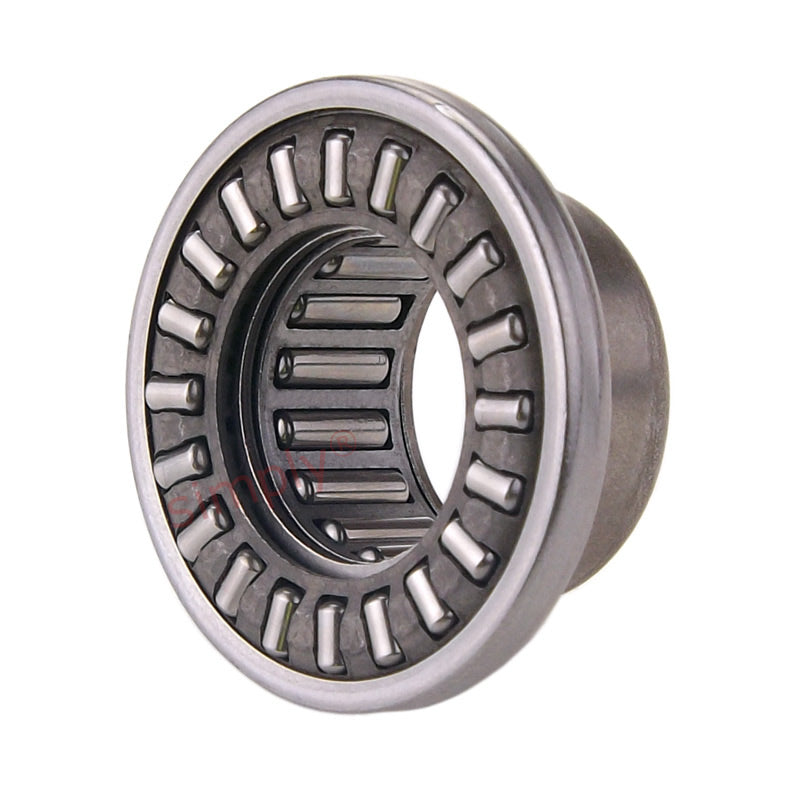

Major Brand RAX 515 Needle Combined Bearing with Needle Thrust Cage 15x24x20mm Allow 2-3 Days
Major Brand RAX 515 Needle Combined Bearing with Needle Thrust Cage 15x24x20mm Allow 2-3 Days
Regular price
Rs. 32,937.95
Regular price
Sale price
Rs. 32,937.95
Taxes included.
In stock
Price Break
10+
Rs. 29,314.78
19+
Rs. 27,667.88
29+
Rs. 27,338.50
39+
Rs. 27,009.12
49+
Rs. 26,679.74
74+
Rs. 26,350.36
99+
Rs. 24,703.46
199+
Rs. 24,374.08
249+
Rs. 24,044.70
499+
Rs. 23,715.32
999+
Rs. 23,056.57
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 20mm
- Width:
- 24mm
Technical
Technical
| Fw | 15mm |
|---|---|
| C | 20mm |
| D | 24mm |
| Da | 28mm |
| Eb | 16.8mm |
| Ea | 24.9mm |
| C1 | 6mm |
| C2 | 6mm |
| rs min | 0.35mm |
| Radial dynamic load | 9.66 kN |
| Radial static load | 12.6 kN |
| Axial dynamic load | 14 kN |
| Axial static load | 34 kN |
| Speed rating | 11500 rpm |
| Inner ring | JR 12x15x16 kN |
| Weight | 0.036 kg |
