SKU: RAX512-MB

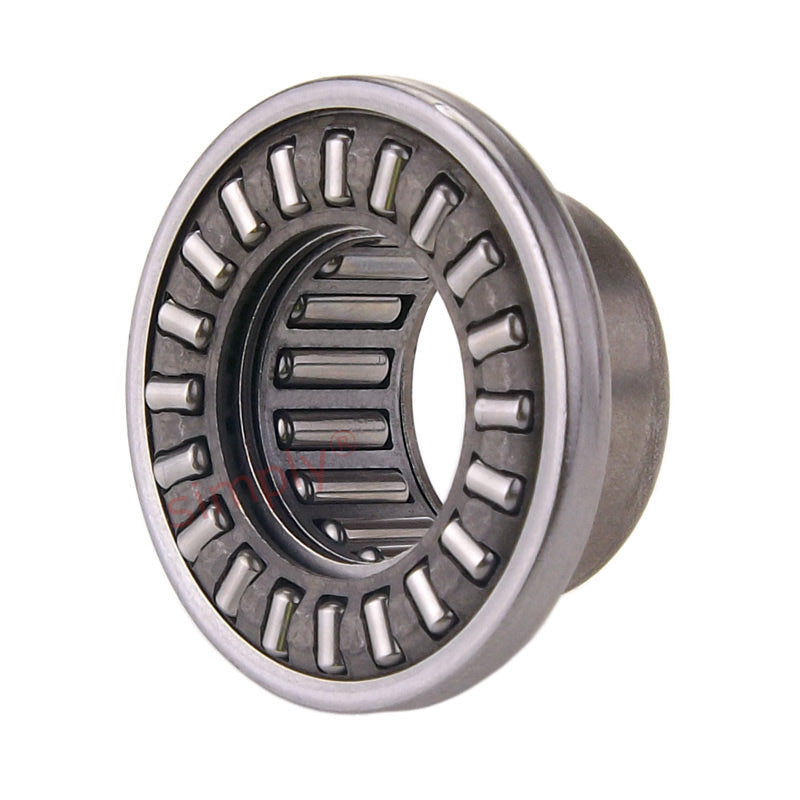

Major Brand RAX 512 Needle Combined Bearing with Needle Thrust Cage 12x21x20mm Allow 2-3 Days
Major Brand RAX 512 Needle Combined Bearing with Needle Thrust Cage 12x21x20mm Allow 2-3 Days
Regular price
Rs. 31,253.22
Regular price
Sale price
Rs. 31,253.22
Taxes included.
In stock
Price Break
10+
Rs. 27,815.37
19+
Rs. 26,252.70
29+
Rs. 25,940.17
39+
Rs. 25,627.64
49+
Rs. 25,315.11
74+
Rs. 25,002.58
99+
Rs. 23,439.92
199+
Rs. 23,127.38
249+
Rs. 22,814.85
499+
Rs. 22,502.32
999+
Rs. 21,877.25
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 20mm
- Width:
- 21mm
Technical
Technical

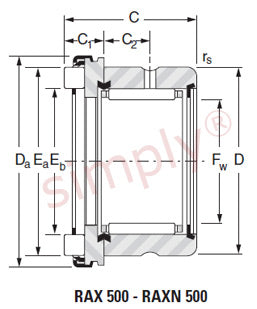

| Fw | 12mm |
|---|---|
| C | 20mm |
| D | 21mm |
| Da | 26mm |
| Eb | 22.9mm |
| Ea | 14.8mm |
| C1 | 6mm |
| C2 | 6mm |
| rs min | 0.35mm |
| Radial dynamic load | 6.78 kN |
| Radial static load | 9.03 kN |
| Axial dynamic load | 12.7 kN |
| Axial static load | 29.5 kN |
| Speed rating | 13000 rpm |
| Inner ring | JR 9x12x16 kN |
| Weight | 0.033 kg |
