SKU: RAX460-MB

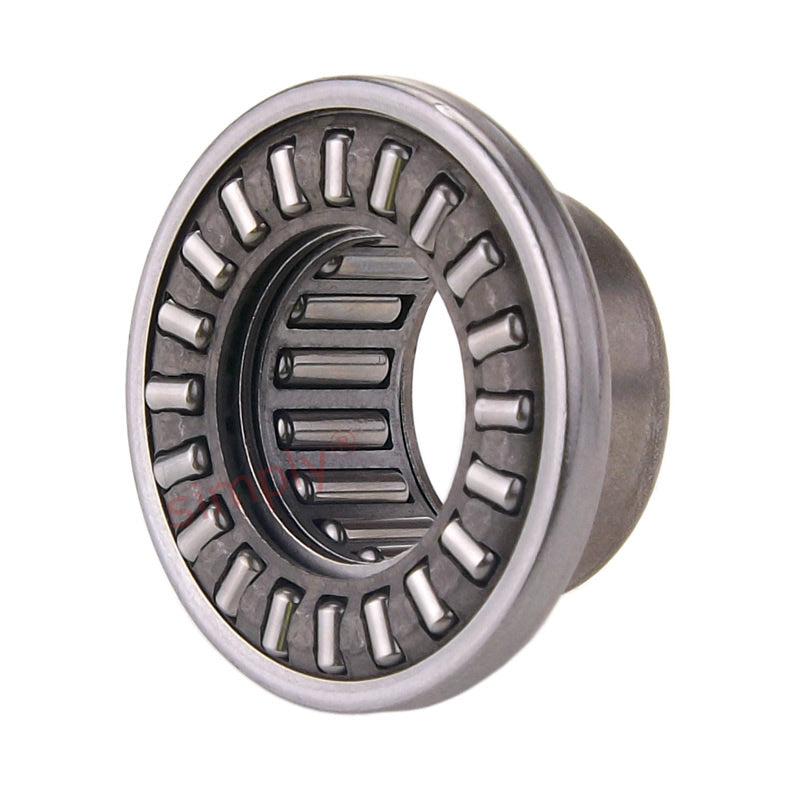

Major Brand RAX 460 Needle Combined Bearing with Needle Thrust Cage 60x72x28mm Allow 2-3 Days
Major Brand RAX 460 Needle Combined Bearing with Needle Thrust Cage 60x72x28mm Allow 2-3 Days
Regular price
Rs. 65,160.27
Regular price
Sale price
Rs. 65,160.27
Taxes included.
In stock
Price Break
10+
Rs. 57,992.64
19+
Rs. 54,734.63
29+
Rs. 54,083.02
39+
Rs. 53,431.42
49+
Rs. 52,779.82
74+
Rs. 52,128.22
99+
Rs. 48,870.20
199+
Rs. 48,218.60
249+
Rs. 47,567.00
499+
Rs. 46,915.39
999+
Rs. 45,612.19
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 28mm
- Width:
- 72mm
Technical
Technical
| Fw | 60mm |
|---|---|
| C | 28mm |
| D | 72mm |
| Da | 85mm |
| Eb | 63.5mm |
| Ea | 79.2mm |
| C1 | 7mm |
| C2 | 11mm |
| rs min | 1.3mm |
| Radial dynamic load | 31.9 kN |
| Radial static load | 78.1 kN |
| Axial dynamic load | 31.5 kN |
| Axial static load | 193 kN |
| Speed rating | 3500 rpm |
| Inner ring | JR 55x60x25 kN |
| Weight | 0.282 kg |
