SKU: RAX445-MB

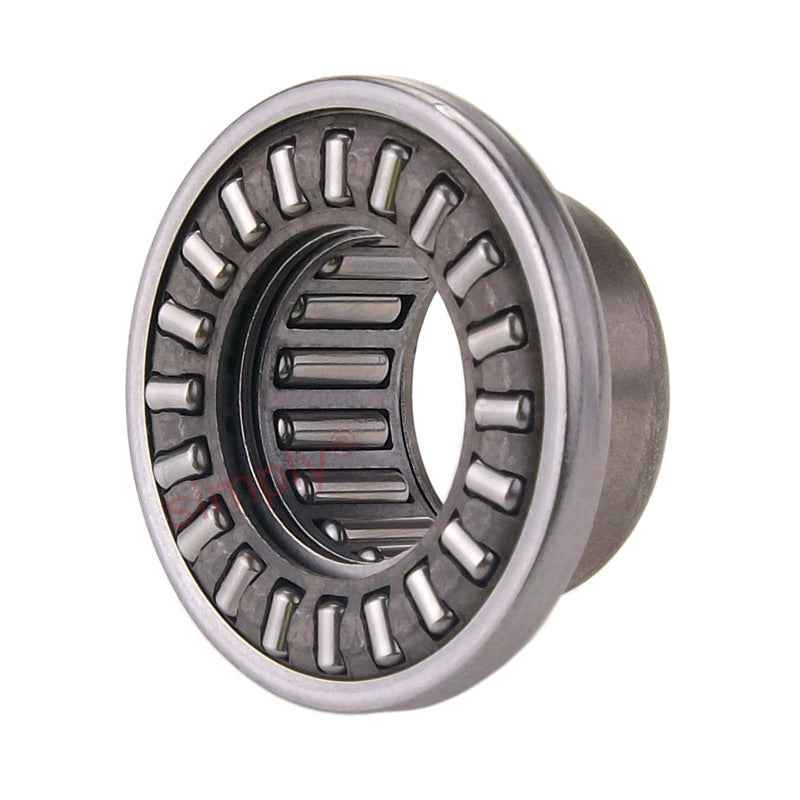

Major Brand RAX 445 Needle Combined Bearing With Needle Thrust Cage 45x58x24mm
Major Brand RAX 445 Needle Combined Bearing With Needle Thrust Cage 45x58x24mm
Regular price
Rs. 18,246.51
Regular price
Sale price
Rs. 18,246.51
Taxes included.
In stock
Price Break
10+
Rs. 16,239.39
19+
Rs. 15,327.07
29+
Rs. 15,144.60
39+
Rs. 14,962.14
49+
Rs. 14,779.67
74+
Rs. 14,597.21
99+
Rs. 13,684.88
199+
Rs. 13,502.42
249+
Rs. 13,319.95
499+
Rs. 13,137.49
999+
Rs. 12,772.56
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 24mm
- Width:
- 58mm
Technical
Technical
| Fw | 45mm |
|---|---|
| C | 24mm |
| D | 58mm |
| Da | 65mm |
| Eb | 48mm |
| Ea | 59.9mm |
| C1 | 6mm |
| C2 | 9mm |
| rs min | 0.85mm |
| Radial dynamic load | 24.9 kN |
| Radial static load | 51.8 kN |
| Axial dynamic load | 21.8 kN |
| Axial static load | 109 kN |
| Speed rating | 4500 rpm |
| Inner ring | JR 40x45x20 kN |
| Weight | 0.179 kg |
