SKU: RAX430-MB

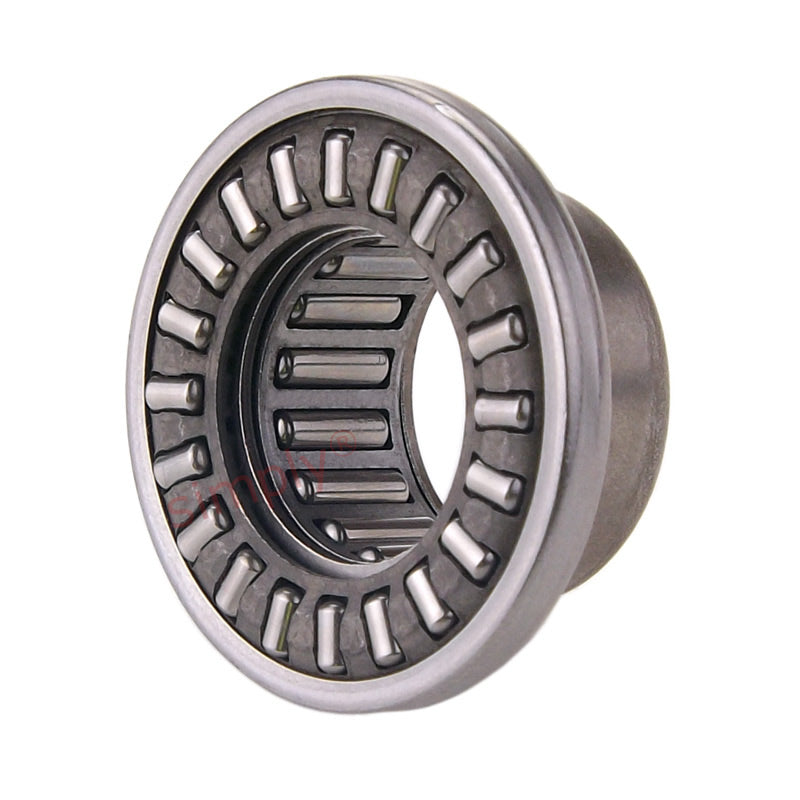

Major Brand RAX 430 Needle Combined Bearing With Needle Thrust Cage 30x42x24mm
Major Brand RAX 430 Needle Combined Bearing With Needle Thrust Cage 30x42x24mm
Regular price
Rs. 11,296.38
ex VAT
Regular price
Sale price
Rs. 11,296.38
ex VAT
In stock
Price Break
10+
Rs. 10,053.78
19+
Rs. 9,488.96
29+
Rs. 9,376.00
39+
Rs. 9,263.03
49+
Rs. 9,150.07
74+
Rs. 9,037.10
99+
Rs. 8,472.29
199+
Rs. 8,359.32
249+
Rs. 8,246.36
499+
Rs. 8,133.39
999+
Rs. 7,907.47
Couldn't load pickup availability
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 24mm
- Width:
- 42mm
Technical
Technical
| Fw | 30mm |
|---|---|
| C | 24mm |
| D | 42mm |
| Da | 47mm |
| Eb | 32.7mm |
| Ea | 42.4mm |
| C1 | 6mm |
| C2 | 9mm |
| rs min | 0.85mm |
| Radial dynamic load | 20.2 kN |
| Radial static load | 34.6 kN |
| Axial dynamic load | 14.5 kN |
| Axial static load | 57 kN |
| Speed rating | 6500 rpm |
| Inner ring | JR 25x30x20 kN |
| Weight | 0.111 kg |
