SKU: RAX425-MB

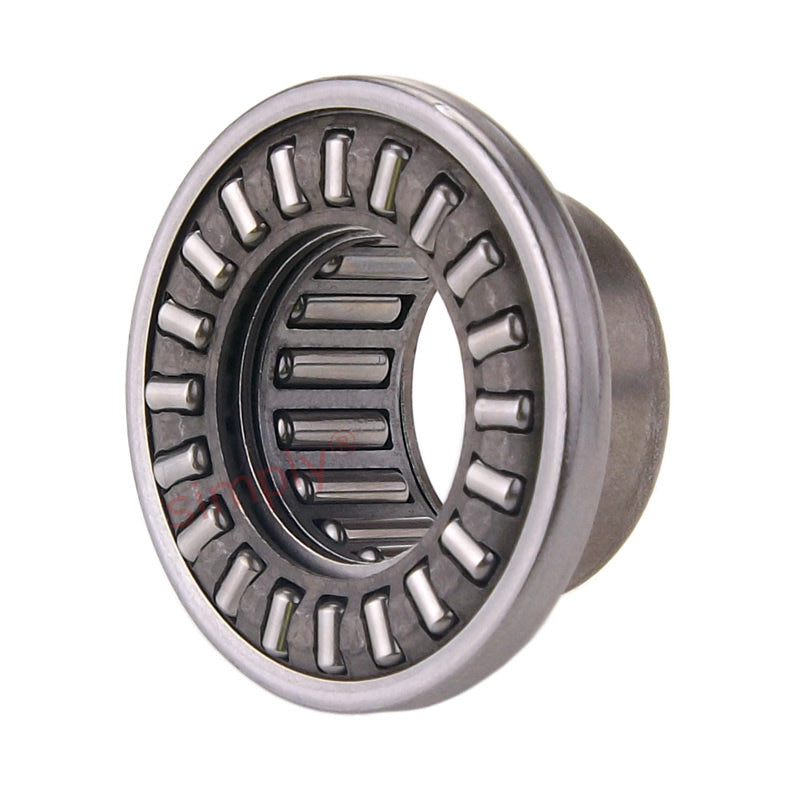

Major Brand RAX 425 Needle Combined Bearing with Needle Thrust Cage 25x37x24mm Allow 2-3 Days
Major Brand RAX 425 Needle Combined Bearing with Needle Thrust Cage 25x37x24mm Allow 2-3 Days
Regular price
Rs. 16,921.20
ex VAT
Regular price
Sale price
Rs. 16,921.20
ex VAT
In stock
Price Break
10+
Rs. 15,059.87
19+
Rs. 14,213.81
29+
Rs. 14,044.60
39+
Rs. 13,875.38
49+
Rs. 13,706.17
74+
Rs. 13,536.96
99+
Rs. 12,690.90
199+
Rs. 12,521.69
249+
Rs. 12,352.48
499+
Rs. 12,183.26
999+
Rs. 11,844.84
Couldn't load pickup availability
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 24mm
- Width:
- 37mm
Technical
Technical
| Fw | 25mm |
|---|---|
| C | 24mm |
| D | 37mm |
| Da | 42mm |
| Eb | 27.7mm |
| Ea | 37.4mm |
| C1 | 6mm |
| C2 | 9mm |
| rs min | 0.85mm |
| Radial dynamic load | 15.1 kN |
| Radial static load | 26.2 kN |
| Axial dynamic load | 13.3 kN |
| Axial static load | 49 kN |
| Speed rating | 7500 rpm |
| Inner ring | JR 20x25x20 kN |
| Weight | 0.099 kg |
