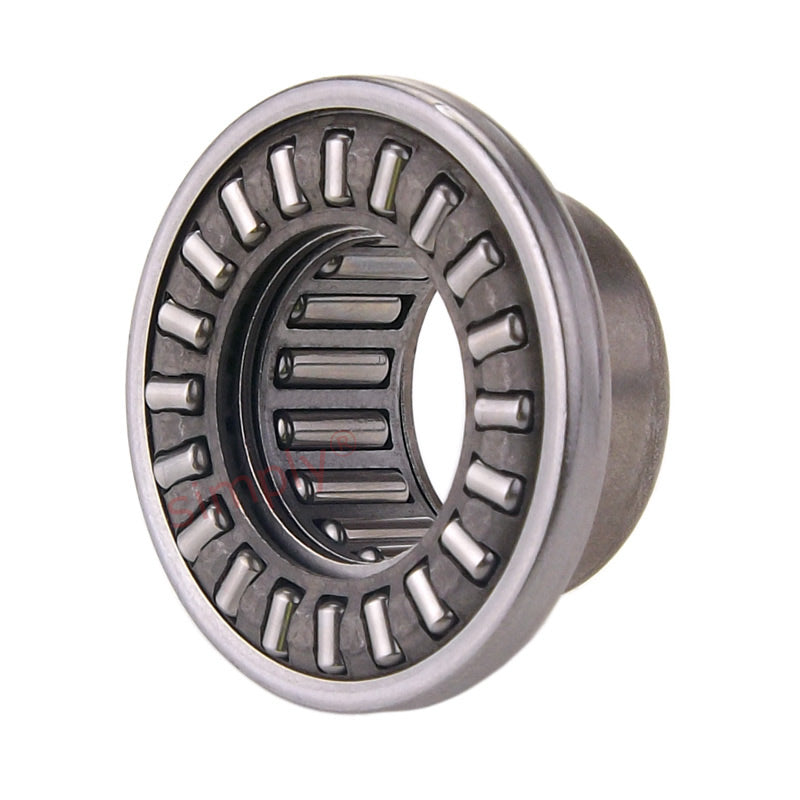

Major Brand RAX 417 Needle Combined Bearing with Needle Thrust Cage 17x26x21mm Allow 2-3 Days
Major Brand RAX 417 Needle Combined Bearing with Needle Thrust Cage 17x26x21mm Allow 2-3 Days
Regular price
Rs. 29,560.81
Regular price
Sale price
Rs. 29,560.81
Taxes included.
In stock
Price Break
10+
Rs. 26,309.12
19+
Rs. 24,831.08
29+
Rs. 24,535.47
39+
Rs. 24,239.86
49+
Rs. 23,944.26
74+
Rs. 23,648.65
99+
Rs. 22,170.61
199+
Rs. 21,875.00
249+
Rs. 21,579.39
499+
Rs. 21,283.78
999+
Rs. 20,692.57
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 21mm
- Width:
- 26mm
Technical
Technical
| Fw | 17mm |
|---|---|
| C | 21mm |
| D | 26mm |
| Da | 30mm |
| Eb | 19mm |
| Ea | 26.6mm |
| C1 | 5mm |
| C2 | 8mm |
| rs min | 0.65mm |
| Radial dynamic load | 11.8 kN |
| Radial static load | 16.3 kN |
| Axial dynamic load | 8.1 kN |
| Axial static load | 23 kN |
| Speed rating | 10500 rpm |
| Inner ring | JR 14x17x17 kN |
| Weight | 0.041 kg |
