SKU: RAX415-MB

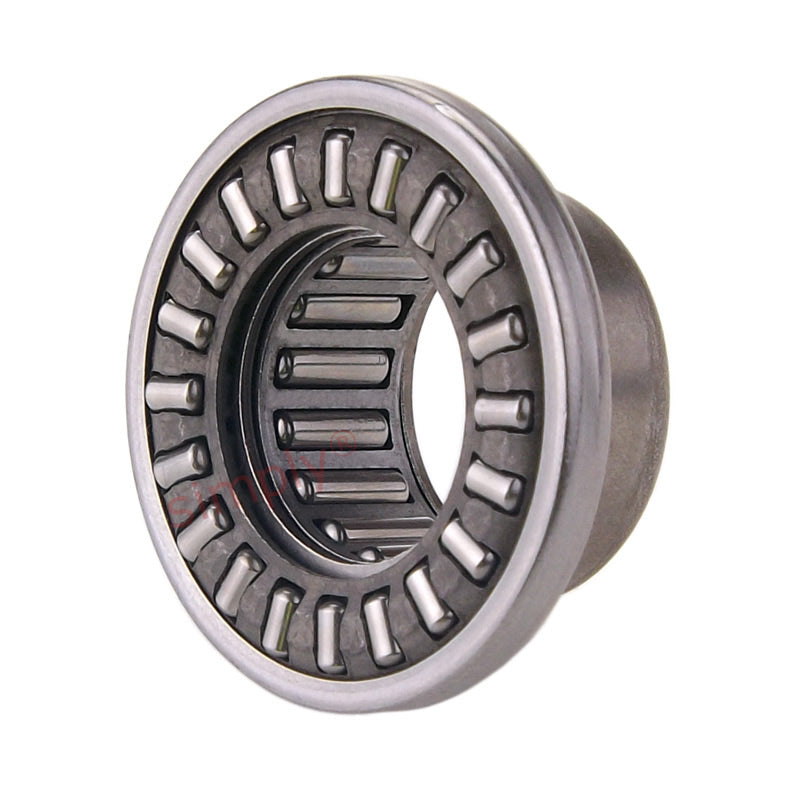

Major Brand RAX 415 Needle Combined Bearing with Needle Thrust Cage 15x24x19mm Allow 2-3 Days
Major Brand RAX 415 Needle Combined Bearing with Needle Thrust Cage 15x24x19mm Allow 2-3 Days
Regular price
Rs. 13,028.47
Regular price
Sale price
Rs. 13,028.47
Taxes included.
In stock
Price Break
10+
Rs. 11,595.34
19+
Rs. 10,943.91
29+
Rs. 10,813.63
39+
Rs. 10,683.35
49+
Rs. 10,553.06
74+
Rs. 10,422.78
99+
Rs. 9,771.35
199+
Rs. 9,641.07
249+
Rs. 9,510.78
499+
Rs. 9,380.50
999+
Rs. 9,119.93
Description
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 19mm
- Width:
- 24mm
Technical
Technical

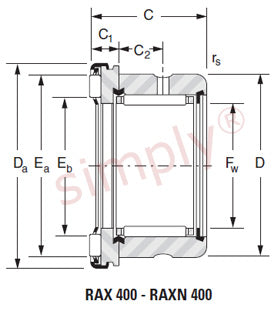

| Fw | 15mm |
|---|---|
| C | 19mm |
| D | 24mm |
| Da | 28mm |
| Eb | 17mm |
| Ea | 24.6mm |
| C1 | 5mm |
| C2 | 6mm |
| rs min | 0.35mm |
| Radial dynamic load | 9.66 kN |
| Radial static load | 12.6 kN |
| Axial dynamic load | 7.6 kN |
| Axial static load | 20.8 kN |
| Speed rating | 11500 rpm |
| Inner ring | JR 12x15x16 kN |
| Weight | 0.034 kg |
