SKU: RAT12-XL-INA

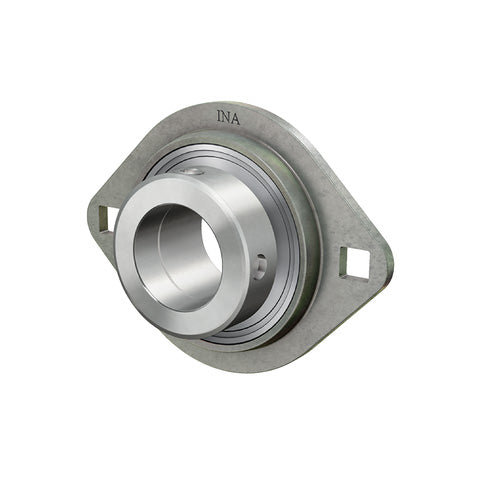

INA RAT12XL Two Bolt Sheet Steel Oval Housing with Eccentric Collar Insert 12mm Bore
INA RAT12XL Two Bolt Sheet Steel Oval Housing with Eccentric Collar Insert 12mm Bore
Regular price
Rs. 2,598.78
Regular price
Sale price
Rs. 2,598.78
Taxes included.
In stock
Price Break
10+
Rs. 2,312.91
19+
Rs. 2,182.98
29+
Rs. 2,156.99
39+
Rs. 2,131.00
49+
Rs. 2,105.01
74+
Rs. 2,079.02
99+
Rs. 1,949.09
199+
Rs. 1,923.10
249+
Rs. 1,897.11
499+
Rs. 1,871.12
999+
Rs. 1,819.15
Description
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This sheet steel housing is a two-piece unit with a moderate load carrying capacity. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, housing units can compensate for static angular misalignment of the shaft. The housings are screw mounted on the adjacent construction. Benefits: Suitable for a lightweight construction, eccentric collar, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 12mm
- Style:
- RAT
- Bolt Hole Centres:
- 63.5mm
Technical
Technical
| d | 12mm |
|---|---|
| H | 81mm |
| U | 24mm |
| A | 7mm |
| B1 | 28.6mm |
| d3 max | 28.4mm |
| J | 63.5mm |
| L | 58.7mm |
| N | 7.1mm |
| S | 2mm |
| V | 48mm |
| Mass | 0.19 kg |
| Load carrying capacity of housing Cor G | 2700 N |
| Basic dynamic load rating Cr | 10100 N |
| Basic static load rating Cor | 4750 N |
| Designation of housing | FLAN40-MST (2 X) |
| Designation of bearing | RAE12-XL-NPP-B |
