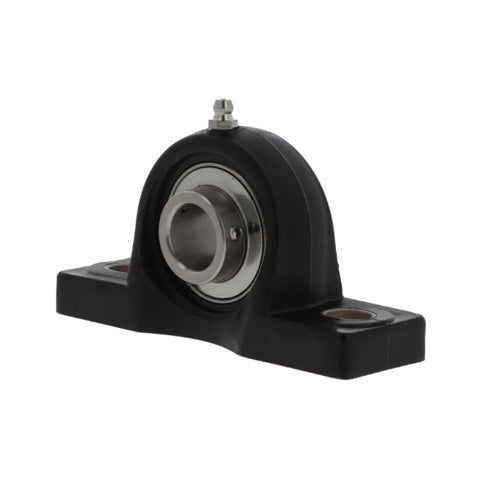

INA RASEY20TVVAHLA Plastic Plummer Block Housing with Grub Screw Insert Corrosion-Resistant Design 20mm Bore
INA RASEY20TVVAHLA Plastic Plummer Block Housing with Grub Screw Insert Corrosion-Resistant Design 20mm Bore
Regular price
Rs. 13,081.40
ex VAT
Regular price
Sale price
Rs. 13,081.40
ex VAT
In stock
Price Break
10+
Rs. 11,642.45
19+
Rs. 10,988.38
29+
Rs. 10,857.56
39+
Rs. 10,726.75
49+
Rs. 10,595.93
74+
Rs. 10,465.12
99+
Rs. 9,811.05
199+
Rs. 9,680.24
249+
Rs. 9,549.42
499+
Rs. 9,418.61
999+
Rs. 9,156.98
Couldn't load pickup availability
Description
Description
|
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This plastic housing is a single-piece unit which features a lubrication groove to facilitate relubrication of the bearing insert. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. The insert bearing is made from corrosion-resistant steel which makes this suitable for use if moisture, contaminated water, salt spray mist, weakly alkaline or weakly acidic cleaning agents are present. Benefits: Re-lubricatable, grub screw fixing, tolerates misalignment of the shaft, corrosion-resistant. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Style:
- RASEY
- Bolt Hole Centres:
- 95mm
Technical
Technical
| d | 20mm |
|---|---|
| L | 127mm |
| H2 | 65.5mm |
| A | 38mm |
| B | 31mm |
| H | 33.3mm |
| H1 | 14.2mm |
| J | 95mm |
| N | 11mm |
| N1 | 14mm |
| Q | 1/4 - 28 UNFS1 |
| 18.3mm | Mass |
| 0.31 kg | Basic dynamic load rating Cr |
| 12300 N | Basic static load rating Cor |
| 6300 N | Load carrying capacity of housing Cor G |
| 7700 N | Designation of housing |
| GEH.ASE04-TV | Designation of bearing |
| GYE20-KRR-B-FA107-VA | Bearing end cap, closed design |
| KASK04-S-G | Bearing end caps (available by agreement) |
| KASK04-S-R-NBR | N/A |
