SKU: RAPR3-322-AK-RSB

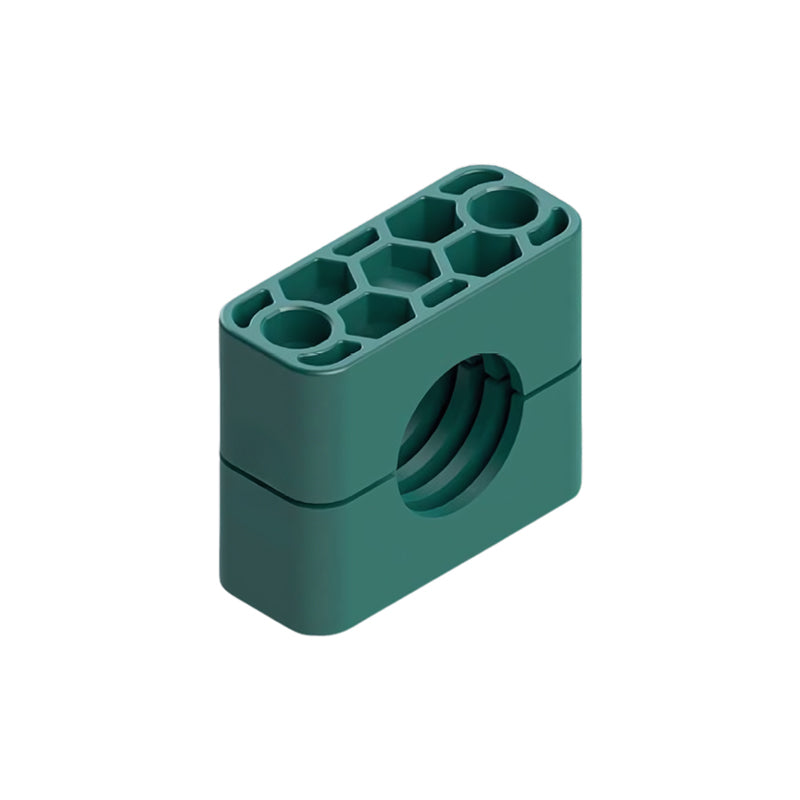

RSB Complete Hose Clamp Suitable for Hoses with 22mm Diameter - Allow 2-3 Days
RSB Complete Hose Clamp Suitable for Hoses with 22mm Diameter - Allow 2-3 Days
Regular price
Rs. 802.68
Regular price
Sale price
Rs. 802.68
Taxes included.
In stock
Price Break
10+
Rs. 714.39
19+
Rs. 674.25
29+
Rs. 666.22
39+
Rs. 658.20
49+
Rs. 650.17
74+
Rs. 642.14
99+
Rs. 602.01
199+
Rs. 593.98
249+
Rs. 585.96
499+
Rs. 577.93
999+
Rs. 561.88
Description
Description
RSB Complete Hose Clamp: These clamps are a versatile and durable solution, designed for securing hoses with diameters ranging from 8mm to 25mm. Suitable for a wide range of industrial applications, including hydraulic systems, these clamps meet DIN 3015 standards for tube clamping. Offering reliable performance and easy installation, they ensure a secure and leak-free connection, making them ideal for high-pressure environments where safety and stability are essential.
Benefits: Versatile fit, easy installation, reliable performance
- Brand / Quality:
- RSB - High Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 50mm
- Width:
- 30mm
- Height:
- 45mm
- Length:
- 48mm
- Material:
- Mild Steel / Polypropylene
- Bolt Hole Centres:
- 33mm
Technical
Technical
| Inside Diameter (Hose Size) | 22mm |
|---|---|
| Overall Width | 30mm |
| Weld Plate Diameter (A) | 50mm |
| Body Diameter (B) | 49mm |
| Cover Plate (C) | 48mm |
| Weld Plate Thickness (D) | 3mm |
| Base to Bore Height (E) | 20.5mm |
| Height Without Screws (F) | 41mm |
| Overall Height (G) | 45mm |
| Bolt Hole Centres (H) | 33mm |
| Body Code | RAPR-322 |
| Body Material | Polypropylene |
| Weld Plate Code | APK-A3 |
| Weld Plate Material | Mild Steel |
| Cover Plate Code | DP-A3 |
| Cover Plate Material | Mild Steel |
| Bolt Kit | SSL-A3 |
| Weight | 1.12 kg |
