SKU: RAPR3-108-F-RSB

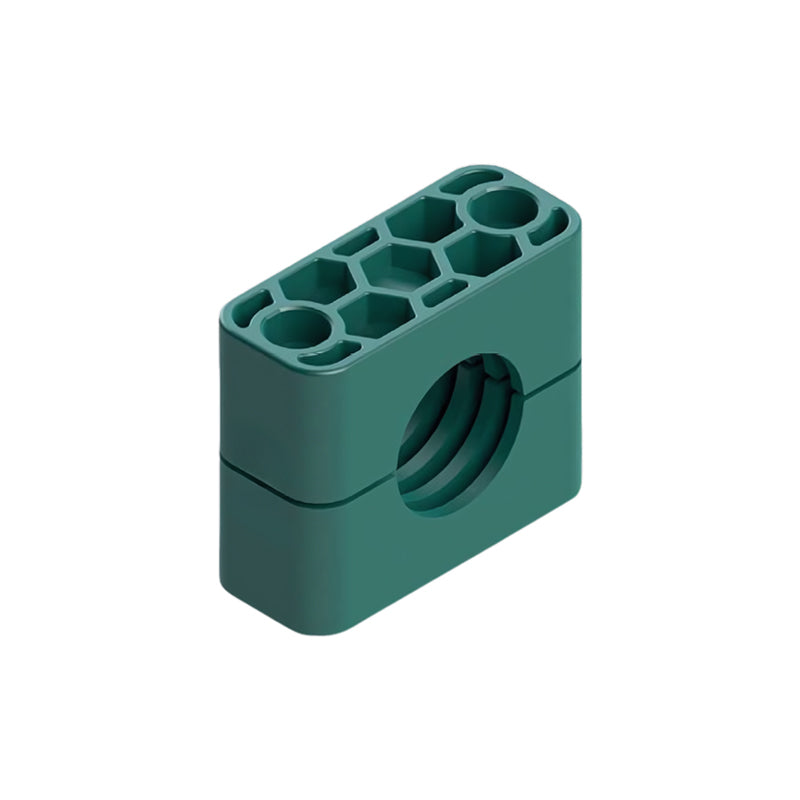

RSB Complete Hose Clamp Suitable for Hoses with 8mm Diameter - Allow 2-3 Days
RSB Complete Hose Clamp Suitable for Hoses with 8mm Diameter - Allow 2-3 Days
Regular price
Rs. 610.65
Regular price
Sale price
Rs. 610.65
Taxes included.
In stock
Price Break
10+
Rs. 543.48
19+
Rs. 512.95
29+
Rs. 506.84
39+
Rs. 500.73
49+
Rs. 494.63
74+
Rs. 488.52
99+
Rs. 457.99
199+
Rs. 451.88
249+
Rs. 445.77
499+
Rs. 439.67
999+
Rs. 427.46
Description
Description
RSB Complete Hose Clamp: These clamps are a versatile and durable solution, designed for securing hoses with diameters ranging from 8mm to 25mm. Suitable for a wide range of industrial applications, including hydraulic systems, these clamps meet DIN 3015 standards for tube clamping. Offering reliable performance and easy installation, they ensure a secure and leak-free connection, making them ideal for high-pressure environments where safety and stability are essential.
Benefits: Versatile fit, easy installation, reliable performance
- Brand / Quality:
- RSB - High Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 36mm
- Width:
- 30mm
- Height:
- 37mm
- Length:
- 34mm
- Material:
- Mild Steel / Polypropylene
- Bolt Hole Centres:
- 20mm
Technical
Technical

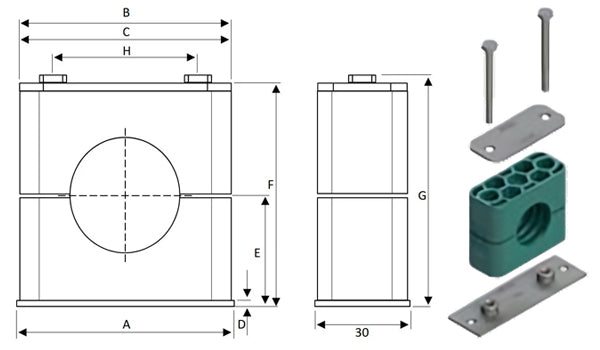

| Inside Diameter (Hose Size) | 8mm |
|---|---|
| Overall Width | 30mm |
| Overall Height (G) | 37mm |
| Cover Plate (C) | 34mm |
| Body Diameter (B) | 34mm |
| Weld Plate Diameter (A) | 36mm |
| Weld Plate Thickness (D) | 3mm |
| Bolt Hole Centres (H) | 20mm |
| Base to Bore Height (E) | 16.5mm |
| Height Without Screws (F) | 33mm |
| Body Code | RAPR-108 |
| Body Material | Polypropylene |
| Weld Plate Code | APK-A1 |
| Weld Plate Material | Mild Steel |
| Cover Plate Code | DP-A1 |
| Cover Plate Material | Mild Steel |
| Bolt Kit | SSL-A0/A1 |
| Weight | 0.81 kg |
