SKU: RALE30-NPP-FA106-INA

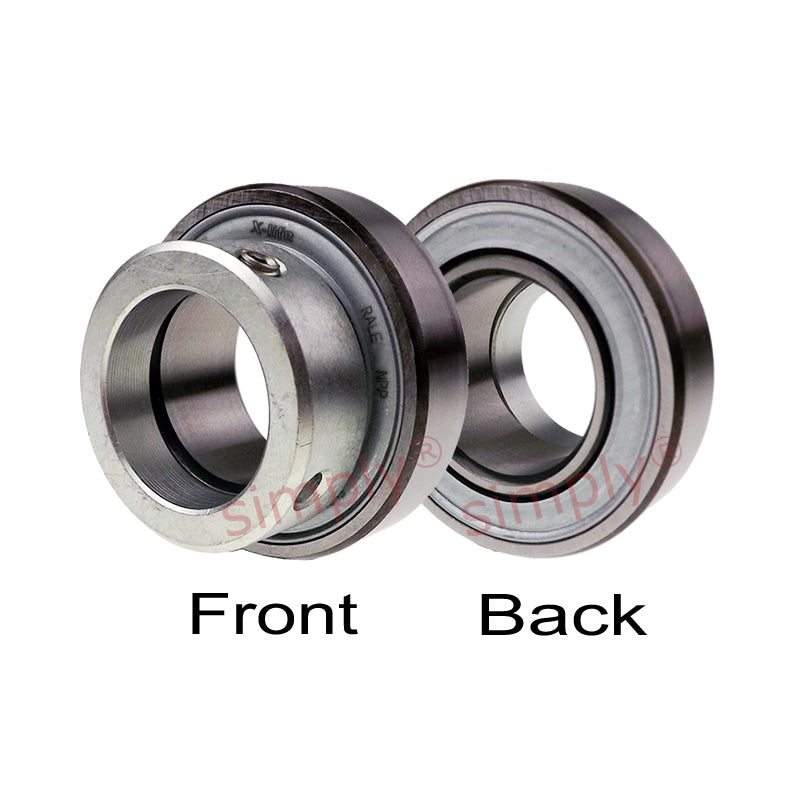

INA RALE30XLNPPFA106 Metric Parallel Outer Bearing Insert with P Seals 30x55x26.5mm
INA RALE30XLNPPFA106 Metric Parallel Outer Bearing Insert with P Seals 30x55x26.5mm
Regular price
Rs. 3,310.61
ex VAT
Regular price
Sale price
Rs. 3,310.61
ex VAT
In stock
Price Break
10+
Rs. 2,946.44
19+
Rs. 2,780.91
29+
Rs. 2,747.81
39+
Rs. 2,714.70
49+
Rs. 2,681.59
74+
Rs. 2,648.49
99+
Rs. 2,482.96
199+
Rs. 2,449.85
249+
Rs. 2,416.75
499+
Rs. 2,383.64
999+
Rs. 2,317.43
Couldn't load pickup availability
Description
Description
| INA RALE..-NPP Series Inserts: Bearing insert with parallel outer race, P seals and eccentric collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. Operating temperature range: -20 deg C to +120 deg C. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 55mm
- Width:
- 26.5mm
- Type:
- Parallel Outer
Technical
Technical
| d | 30mm |
|---|---|
| D | 55mm |
| B1 | 26.5mm |
| B | 18.5mm |
| C | 13mm |
| d2 | 35.7mm |
| d3 max | 42.5mm |
| S | 6.5mm |
| W | 2.5mm |
| Dynamic load Cr | 13200 N |
| Static load C0r | 8300 N |
| Weight | 0.18 kg |
