SKU: RALE25-NPP-B-INA

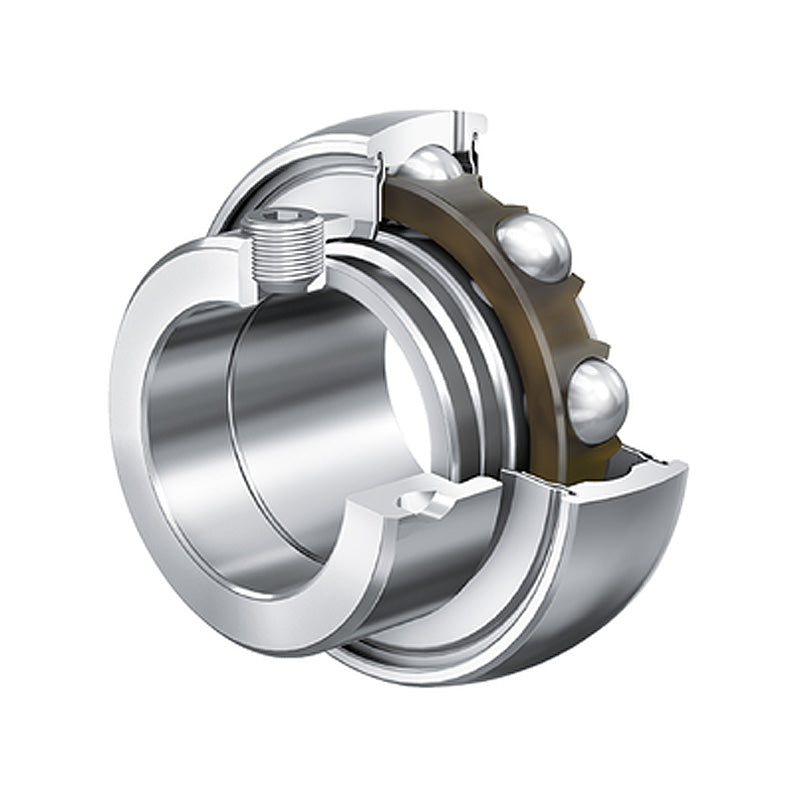

INA RALE25XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Eccentric Collar 25x47x25.5mm
INA RALE25XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Eccentric Collar 25x47x25.5mm
Regular price
Rs. 2,751.29
ex VAT
Regular price
Sale price
Rs. 2,751.29
ex VAT
In stock
Price Break
10+
Rs. 2,448.65
19+
Rs. 2,311.08
29+
Rs. 2,283.57
39+
Rs. 2,256.06
49+
Rs. 2,228.54
74+
Rs. 2,201.03
99+
Rs. 2,063.47
199+
Rs. 2,035.95
249+
Rs. 2,008.44
499+
Rs. 1,980.93
999+
Rs. 1,925.90
Couldn't load pickup availability
Description
Description
|
INA RALE..-NPP-B Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. Operating temperature range: -20 deg C to +120 deg C. Benefits: Compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 47mm
- Width:
- 25.5mm
- Type:
- Spherical Outer
Technical
Technical
| d | 25mm |
|---|---|
| Dsp | 47mm |
| B1 | 25.5mm |
| B | 17.5mm |
| C | 12mm |
| d2 | 30mm |
| d3 max | 36mm |
| S | 6mm |
| W | 2.5mm |
| Dynamic load Cr | 10100 N |
| Static load C0r | 5900 N |
| Weight | 0.12 kg |
