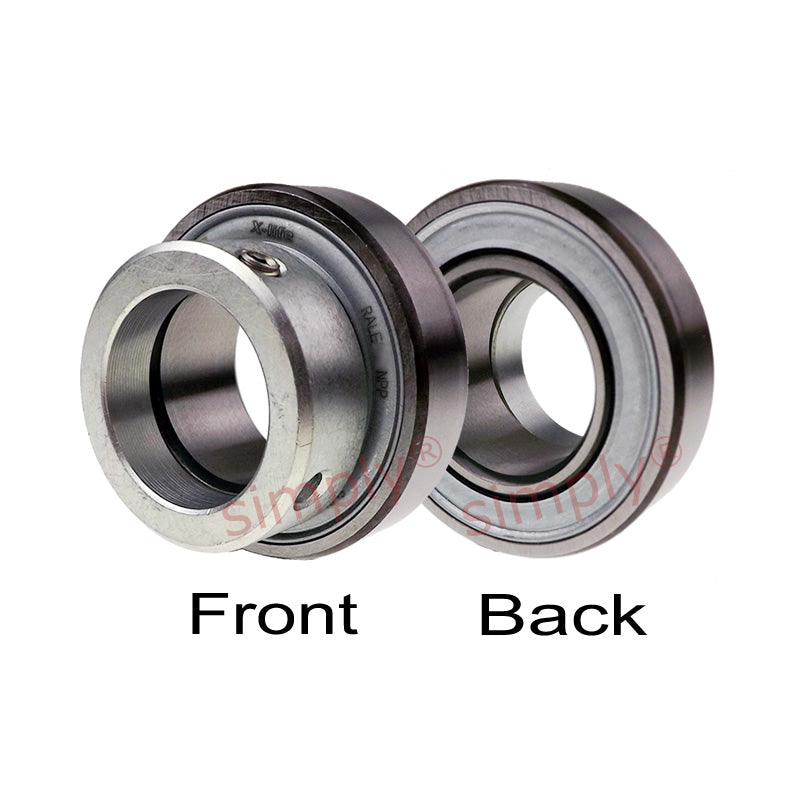

INA RALE20XLNPPFA106 Metric Parallel Outer Bearing Insert with P Seals 20x42x24.5mm
INA RALE20XLNPPFA106 Metric Parallel Outer Bearing Insert with P Seals 20x42x24.5mm
Regular price
Rs. 2,564.22
Regular price
Sale price
Rs. 2,564.22
Taxes included.
In stock
Price Break
10+
Rs. 2,282.16
19+
Rs. 2,153.94
29+
Rs. 2,128.30
39+
Rs. 2,102.66
49+
Rs. 2,077.02
74+
Rs. 2,051.38
99+
Rs. 1,923.17
199+
Rs. 1,897.52
249+
Rs. 1,871.88
499+
Rs. 1,846.24
999+
Rs. 1,794.95
Description
Description
| INA RALE..-NPP Series Inserts: Bearing insert with parallel outer race, P seals and eccentric collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. Operating temperature range: -20 deg C to +120 deg C. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 42mm
- Width:
- 24.5mm
Technical
Technical
| d | 20mm |
|---|---|
| D | 42mm |
| B1 | 24.5mm |
| B | 16.7mm |
| C | 12mm |
| d2 | 25.4mm |
| d3 max | 30mm |
| S | 6mm |
| W | 2.5mm |
| Dynamic load Cr | 9400 N |
| Static load C0r | 5000 N |
| Weight | 0.1 kg |
