SKU: RAE60-NPP-INA

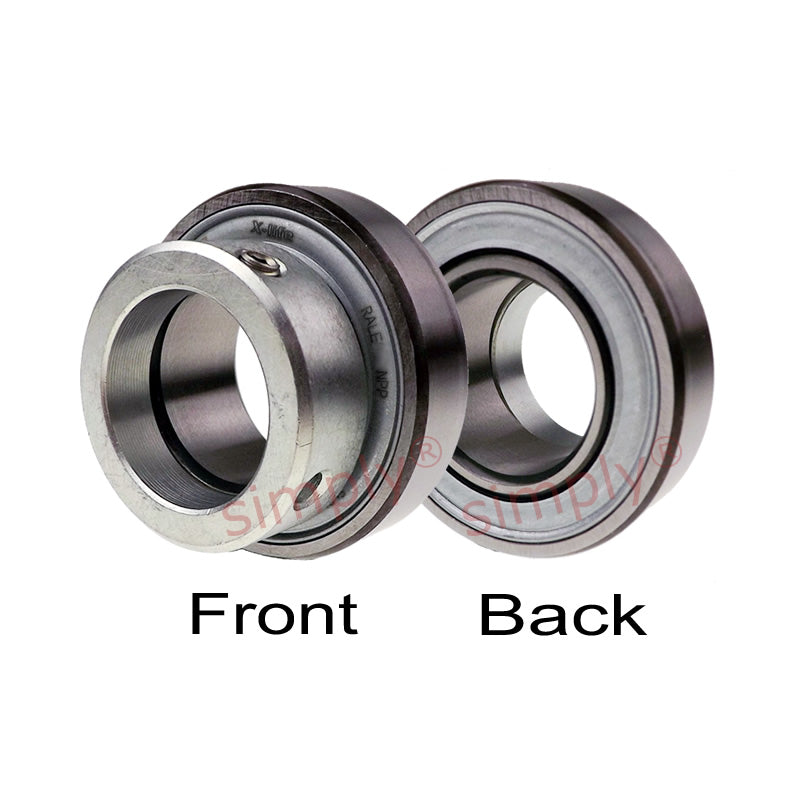

INA RAE60XLNPP Metric Parallel Outer Bearing Insert with P Seals and Eccentric Collar 60x110x53.1mm
INA RAE60XLNPP Metric Parallel Outer Bearing Insert with P Seals and Eccentric Collar 60x110x53.1mm
Regular price
Rs. 10,316.59
ex VAT
Regular price
Sale price
Rs. 10,316.59
ex VAT
In stock
Price Break
10+
Rs. 9,181.77
19+
Rs. 8,665.94
29+
Rs. 8,562.77
39+
Rs. 8,459.60
49+
Rs. 8,356.44
74+
Rs. 8,253.27
99+
Rs. 7,737.44
199+
Rs. 7,634.28
249+
Rs. 7,531.11
499+
Rs. 7,427.94
999+
Rs. 7,221.61
Couldn't load pickup availability
Description
Description
|
INA RAE..-NPP Series Inserts: Bearing insert with parallel outer race, P seals and eccentric collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Width:
- 53.1mm
- Type:
- Parallel Outer
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| B1 | 53.1mm |
| B | 37.1mm |
| C | 24mm |
| d2 | 72mm |
| d3 max | 84mm |
| S | 13.5mm |
| W | 5mm |
| Dynamic load Cr | 52000 N |
| Static load C0r | 36000 N |
| Weight | 1.43 kg |
