SKU: RAE30-NPP-FA106-INA

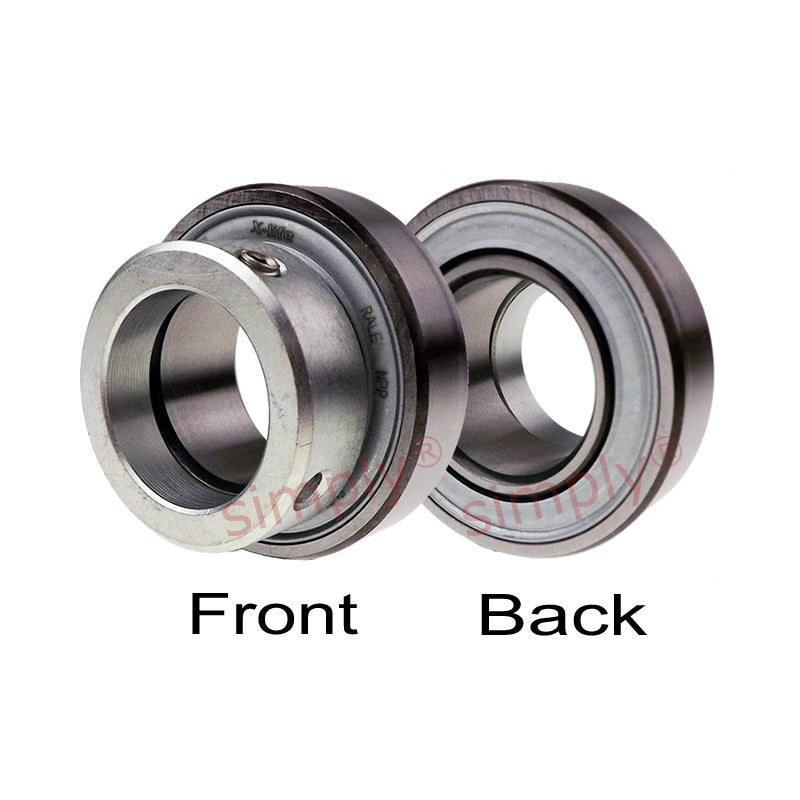

INA RAE30XLNPPFA106 Metric Parallel Outer Bearing Insert with P Seals and Eccentric Collar 30x62x35.8mm
INA RAE30XLNPPFA106 Metric Parallel Outer Bearing Insert with P Seals and Eccentric Collar 30x62x35.8mm
Regular price
Rs. 3,845.93
ex VAT
Regular price
Sale price
Rs. 3,845.93
ex VAT
In stock
Price Break
10+
Rs. 3,422.88
19+
Rs. 3,230.58
29+
Rs. 3,192.12
39+
Rs. 3,153.66
49+
Rs. 3,115.20
74+
Rs. 3,076.74
99+
Rs. 2,884.45
199+
Rs. 2,845.99
249+
Rs. 2,807.53
499+
Rs. 2,769.07
999+
Rs. 2,692.15
Couldn't load pickup availability
Description
Description
|
INA RAE..-NPP Series Inserts: Bearing insert with parallel outer race, P seals and eccentric collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 35.8mm
- Type:
- Parallel Outer
Technical
Technical
| d | 30mm |
|---|---|
| D | 62mm |
| B1 | 35.8mm |
| B | 23.8mm |
| C | 18mm |
| d2 | 37.4mm |
| d3 max | 44mm |
| S | 9mm |
| W | 4mm |
| Dynamic load Cr | 19500 N |
| Static load C0r | 11300 N |
| Weight | 0.33 kg |
