SKU: RAE20-NPP-FA106-INA

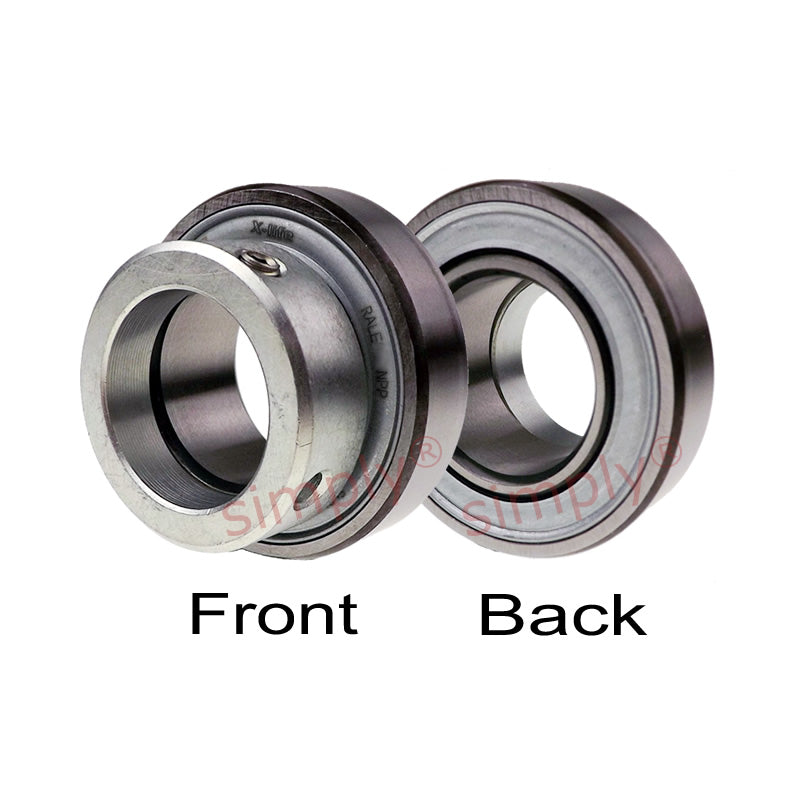

INA RAE20XLNPPFA106 Metric Parallel Outer Bearing Insert with P Seals and Eccentric Collar 20x47x31mm
INA RAE20XLNPPFA106 Metric Parallel Outer Bearing Insert with P Seals and Eccentric Collar 20x47x31mm
Regular price
Rs. 3,002.04
Regular price
Sale price
Rs. 3,002.04
Taxes included.
In stock
Price Break
10+
Rs. 2,671.82
19+
Rs. 2,521.71
29+
Rs. 2,491.69
39+
Rs. 2,461.67
49+
Rs. 2,431.65
74+
Rs. 2,401.63
99+
Rs. 2,251.53
199+
Rs. 2,221.51
249+
Rs. 2,191.49
499+
Rs. 2,161.47
999+
Rs. 2,101.43
Description
Description
|
INA RAE..-NPP Series Inserts: Bearing insert with parallel outer race, P seals and eccentric collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 31mm
Technical
Technical
| d | 20mm |
|---|---|
| D | 47mm |
| B1 | 31mm |
| B | 21.4mm |
| C | 14mm |
| d2 | 26.9mm |
| d3 max | 33mm |
| S | 7.5mm |
| W | 3mm |
| Dynamic load Cr | 12800 N |
| Static load C0r | 6600 N |
| Weight | 0.17 kg |
