SKU: RAE12-NPP-FA106-INA

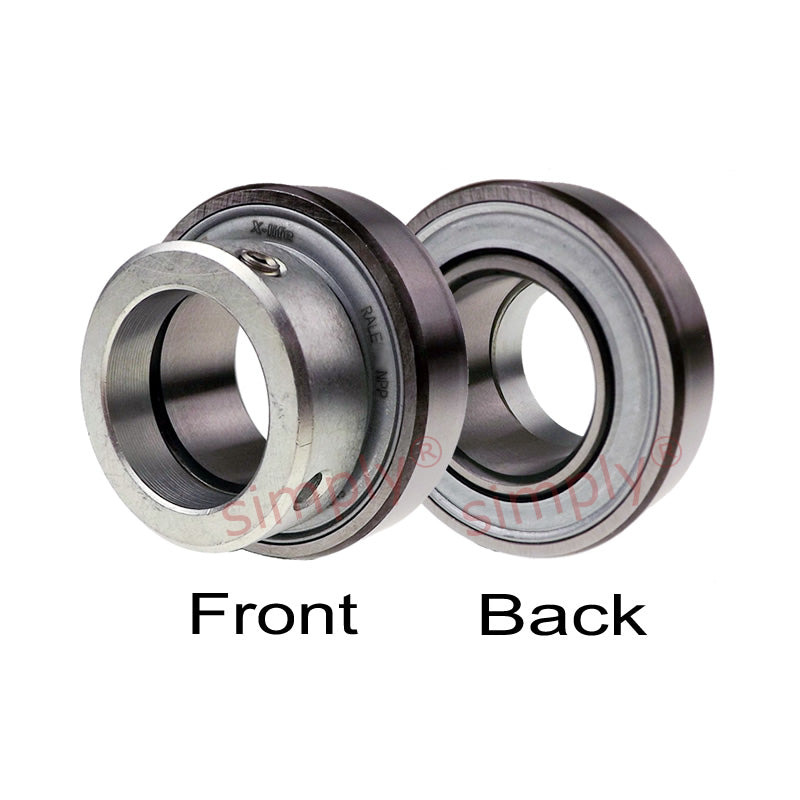

INA RAE12XLNPPFA106 Metric Parallel Outer Bearing Insert with P Seals and Eccentric Collar 12x40x28.6mm
INA RAE12XLNPPFA106 Metric Parallel Outer Bearing Insert with P Seals and Eccentric Collar 12x40x28.6mm
Regular price
Rs. 2,385.18
ex VAT
Regular price
Sale price
Rs. 2,385.18
ex VAT
In stock
Price Break
10+
Rs. 2,122.81
19+
Rs. 2,003.55
29+
Rs. 1,979.70
39+
Rs. 1,955.85
49+
Rs. 1,932.00
74+
Rs. 1,908.14
99+
Rs. 1,788.89
199+
Rs. 1,765.03
249+
Rs. 1,741.18
499+
Rs. 1,717.33
999+
Rs. 1,669.63
Couldn't load pickup availability
Description
Description
|
INA RAE..-NPP Series Inserts: Bearing insert with parallel outer race, P seals and eccentric collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 40mm
- Width:
- 28.6mm
- Type:
- Parallel Outer
Technical
Technical
| d | 12mm |
|---|---|
| D | 40mm |
| B1 | 28.6mm |
| B | 19mm |
| C | 12mm |
| d2 | 23mm |
| d3 max | 28mm |
| S | 6.5mm |
| W | 3mm |
| Dynamic load Cr | 9800 N |
| Static load C0r | 4750 N |
| Weight | 0.13 kg |
