SKU: RABRB15/47-FA106-INA

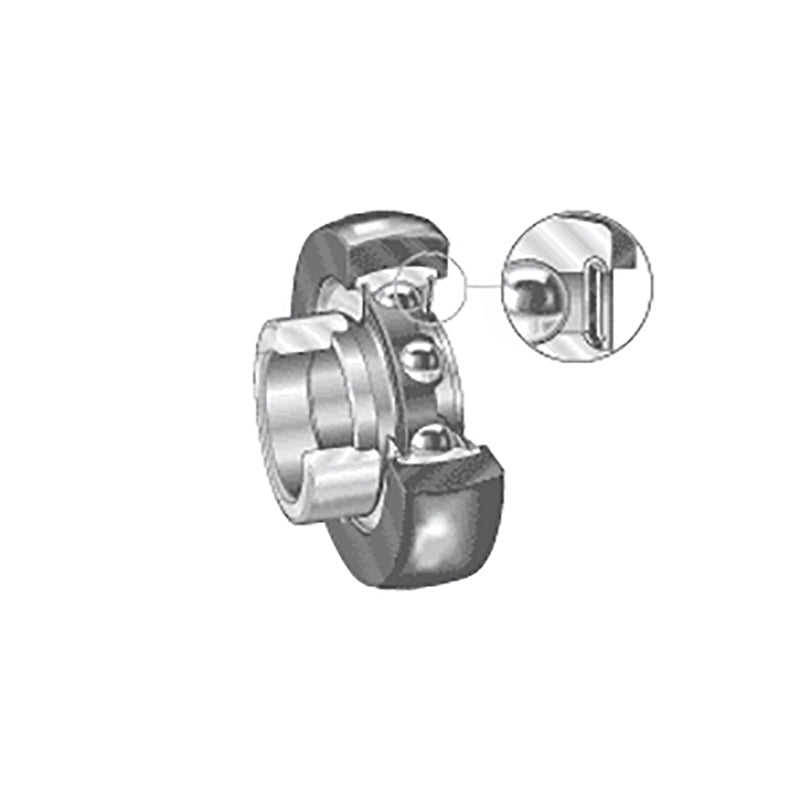

INA RABRB15/47XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 15x47.3x31.1mm
INA RABRB15/47XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 15x47.3x31.1mm
Regular price
Rs. 3,567.48
ex VAT
Regular price
Sale price
Rs. 3,567.48
ex VAT
In stock
Price Break
10+
Rs. 3,175.06
19+
Rs. 2,996.68
29+
Rs. 2,961.01
39+
Rs. 2,925.33
49+
Rs. 2,889.66
74+
Rs. 2,853.98
99+
Rs. 2,675.61
199+
Rs. 2,639.94
249+
Rs. 2,604.26
499+
Rs. 2,568.59
999+
Rs. 2,497.24
Couldn't load pickup availability
Description
Description
|
INA RABRA and RABRB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 47.3mm
- Width:
- 31.1mm
- Type:
- Spherical Outer
Technical
Technical
| d | 15mm |
|---|---|
| D | 47.3mm |
| B2 | 31.1mm |
| B1 | 28.6mm |
| C | 18mm |
| D2 | 33.5mm |
| d3 max | 28mm |
| S1 | 22.1mm |
| Operating temperature | -20 deg C to +85 deg C |
| Rubber ring: hardness, Shore A | 70 deg |
| Rubber ring: load carrying capacity Cg | 840 N |
| Dynamic load Cr | 9800 N |
| Static load C0r | 4750 N |
| Designation of rubber interliner | RABR39/46 |
| Designation of bearing | RAE15-NPP-B-FA106 |
| Weight | 0.15 kg |
