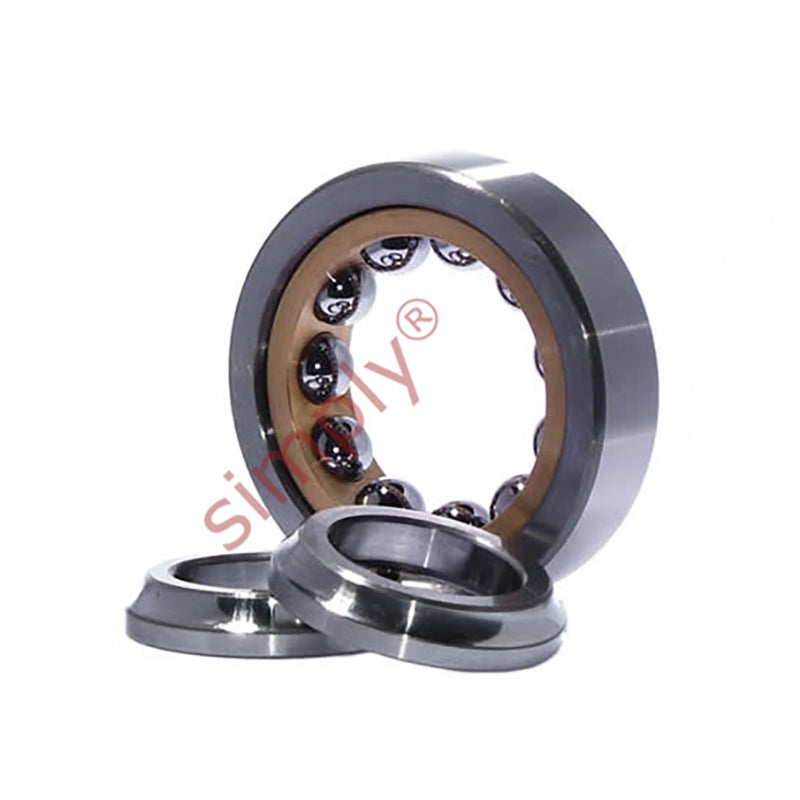

SKF QJ205N2MAC2L Four Point Contact Ball Bearing with Locating Slots and Brass Cage 25x52x15mm
SKF QJ205N2MAC2L Four Point Contact Ball Bearing with Locating Slots and Brass Cage 25x52x15mm
Regular price
Rs. 17,821.49
Regular price
Sale price
Rs. 17,821.49
Taxes included.
In stock
Price Break
10+
Rs. 15,861.13
19+
Rs. 14,970.05
29+
Rs. 14,791.84
39+
Rs. 14,613.62
49+
Rs. 14,435.41
74+
Rs. 14,257.19
99+
Rs. 13,366.12
199+
Rs. 13,187.90
249+
Rs. 13,009.69
499+
Rs. 12,831.47
999+
Rs. 12,475.04
Share this product
Description
Description
SKF Four Point Contact Ball Bearings: Are radial single-row angular contact ball bearings with raceways that are designed to tolerate axial load in both directions. The inner raceways of these bearings are separable for ease of mounting. This style of bearing takes up considerably less space than the double-row ball bearing of equivalent bore size.
Benefits: Supports axial loads in both directions, ease of mounting.
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Clearance:
- * Standard
Technical
Technical
| d | 25mm |
|---|---|
| D | 52mm |
| B | 15mm |
| Dynamic load C | 27 kN |
| Static load Co | 21.2 kN |
| Fatigue load limit Pu | 0.83 kN |
| Reference speed | 16000 rpm |
| Limiting speed | 22000 rpm |
| Weight | 0.16 kg |
| d1 | 31.5mm |
| D1 | 43mm |
| r1r2 min | 1mm |
| a | 27mm |
| b | 4.5mm |
| h | 3mm |
| ro | 0.5mm |
| da min | 30.6mm |
| Da max | 46.4mm |
| ra max | 1mm |
