SKU: QJ.305.MPA.MB

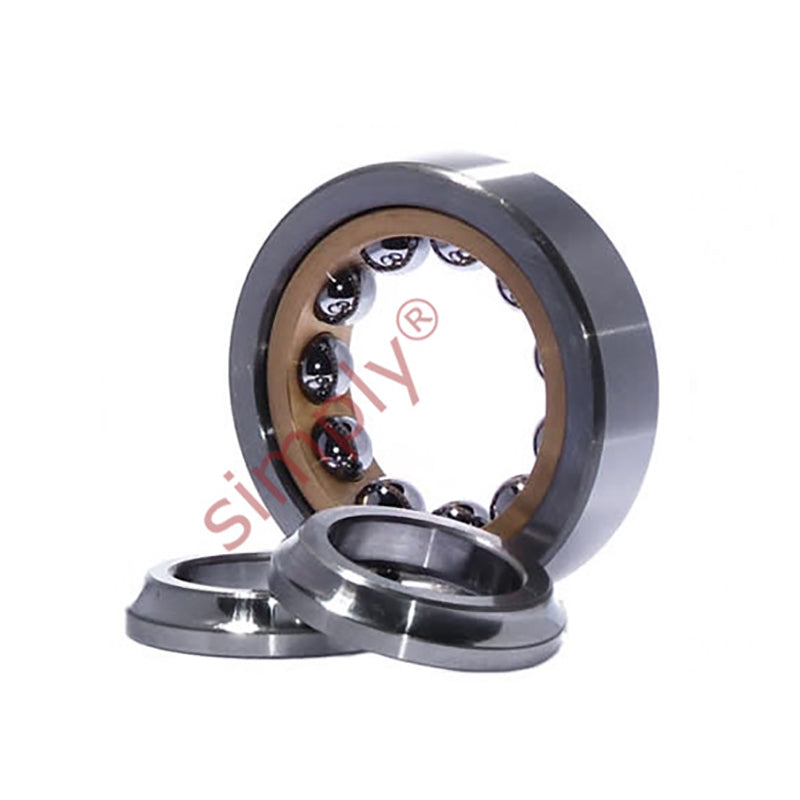

QJ305MPA Four Point Contact Ball Bearing 25x62x17mm
QJ305MPA Four Point Contact Ball Bearing 25x62x17mm
Regular price
Rs. 8,740.60
ex VAT
Regular price
Sale price
Rs. 8,740.60
ex VAT
In stock
Price Break
10+
Rs. 7,779.13
19+
Rs. 7,342.10
29+
Rs. 7,254.70
39+
Rs. 7,167.29
49+
Rs. 7,079.89
74+
Rs. 6,992.48
99+
Rs. 6,555.45
199+
Rs. 6,468.04
249+
Rs. 6,380.64
499+
Rs. 6,293.23
999+
Rs. 6,118.42
Couldn't load pickup availability
Description
Description
Four Point Contact Ball Bearings: Are radial single row angular contact ball bearings with raceways that are designed to tolerate axial load in both directions. The inner raceways of these bearings are separable for ease of mounting. This style of bearing takes up considerably less space than the double row ball bearing of equivalent bore size
Benefits: Supports axial loads in both directions, ease of mounting.
Benefits: Supports axial loads in both directions, ease of mounting.
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 62mm
- Width:
- 17mm
- Clearance:
- * Standard
Technical
Technical
| d | 25mm |
|---|---|
| D | 62mm |
| B | 17mm |
| r1r2 min | 1.1 |
| a | 31 |
| Dynamic load | 40.7 kN |
| Static load | 27.8 kN |
| Cu | 1.3 kN |
| Reference speed | 9000 rpm |
| Limiting speed | 20000 rpm |
| Weight | 0.28kg |
