SKU: QJ.208.MPA.MB

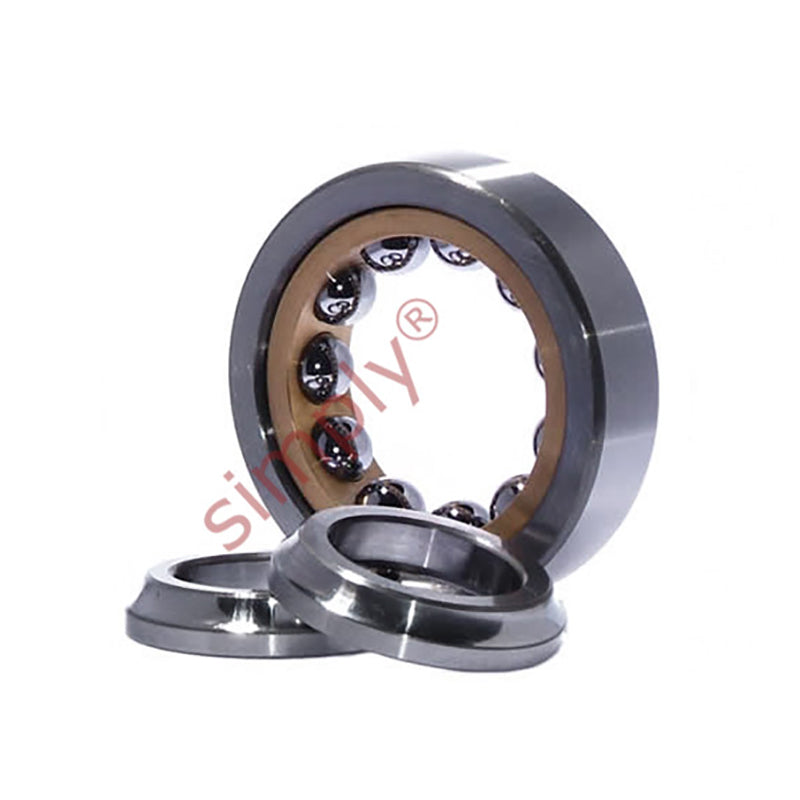

QJ208MPA Four Point Contact Ball Bearing 40x80x18mm
QJ208MPA Four Point Contact Ball Bearing 40x80x18mm
Regular price
Rs. 10,543.63
Regular price
Sale price
Rs. 10,543.63
Taxes included.
In stock
Price Break
10+
Rs. 9,383.83
19+
Rs. 8,856.65
29+
Rs. 8,751.21
39+
Rs. 8,645.78
49+
Rs. 8,540.34
74+
Rs. 8,434.90
99+
Rs. 7,907.72
199+
Rs. 7,802.29
249+
Rs. 7,696.85
499+
Rs. 7,591.41
999+
Rs. 7,380.54
Share this product
Description
Description
Four Point Contact Ball Bearings: Are radial single row angular contact ball bearings with raceways that are designed to tolerate axial load in both directions. The inner raceways of these bearings are separable for ease of mounting. This style of bearing takes up considerably less space than the double row ball bearing of equivalent bore size
Benefits: Supports axial loads in both directions, ease of mounting.
Benefits: Supports axial loads in both directions, ease of mounting.
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 18mm
- Clearance:
- * Standard
Technical
Technical
| d | 40mm |
|---|---|
| D | 80mm |
| B | 18mm |
| r1r2 min | 1.1 |
| a | 42 |
| Dynamic load | 62 kN |
| Static load | 50 kN |
| Cu | 2.3 kN |
| Reference speed | 7300 rpm |
| Limiting speed | 15000 rpm |
| Weight | 0.44kg |
