SKU: PSM061006A51-SKF

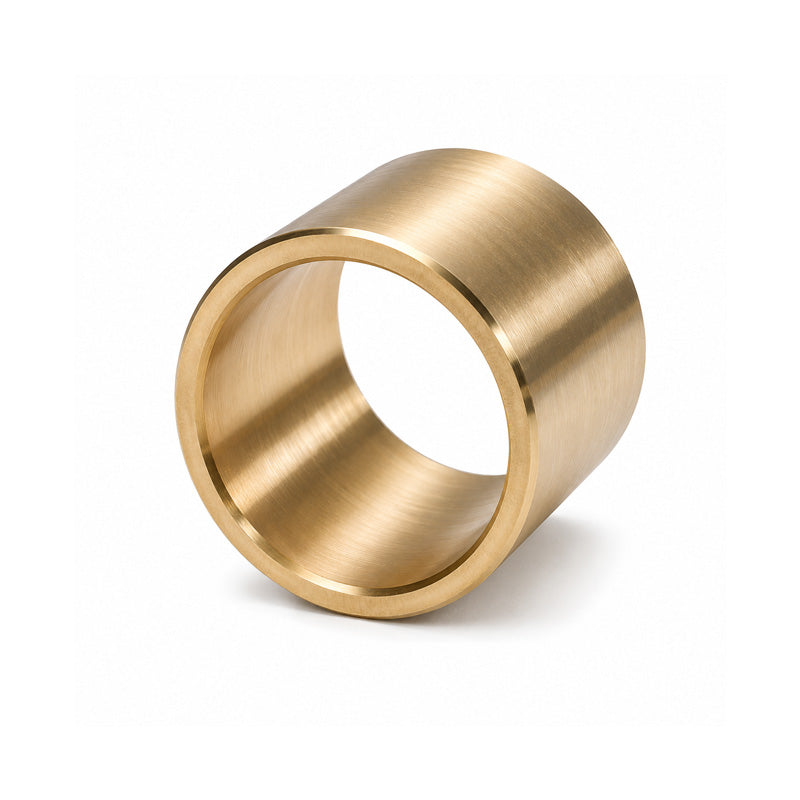

SKF PSM061006A51 Imperial Plain Sintered Bronze Bush 0.236x0.394x0.236 inch
SKF PSM061006A51 Imperial Plain Sintered Bronze Bush 0.236x0.394x0.236 inch
Regular price
Rs. 421.18
Regular price
Sale price
Rs. 421.18
Taxes included.
In stock
Price Break
10+
Rs. 374.85
19+
Rs. 353.79
29+
Rs. 349.58
39+
Rs. 345.37
49+
Rs. 341.16
74+
Rs. 336.94
99+
Rs. 315.89
199+
Rs. 311.67
249+
Rs. 307.46
499+
Rs. 303.25
999+
Rs. 294.83
Description
Description
PSM/PSMF Bronze Bushing: SKF Sintered Bronze cylindrical bushings are all self-lubricating and maintenance-free. The sintered bronze bushings consist of a porous bronze matrix impregnated with lubricant. The permissible sliding velocity for sintered bronze bushings is very high, which makes the bushings suitable for rotating applications. SKF offers a full range of both plain and flanged cylindrical bushings. SKF Sintered Bronze bushings are most
suitable for applications with rotating movements and where the self-lubricating performance requirements are high.
Uses of Application electrical equipment, household equipment, printing machinery, machine tools
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 6mm = 0.236 inch
- Outside Diameter:
- 10mm = 0.394 inch
- Length:
- 6mm = 0.236 inch
Technical
Technical
| d | 0.236 inch |
|---|---|
| D | 0.394 inch |
| B | 0.236 inch |
| Tolerance shaft | h8 |
| Tolerance housing | H7 |
| Specific Dynamic Load Factor ( K ) | 1450.377 psi |
| Specific Static Load Factor ( K0 ) | 2900.755 psi |
| Permissable Sliding Velocity ( v ) | min. 49.213 ft/min |
| Permissable Sliding Velocity ( v ) | max. 984.252 ft/min |
| Coefficient of Friction ( y ) | min. 0.05 |
| Coefficient of Friction ( y ) | max. 0.1 |
| Imperial Weight | 0.002 lbs |
