SKU: PSM051006A51-EU

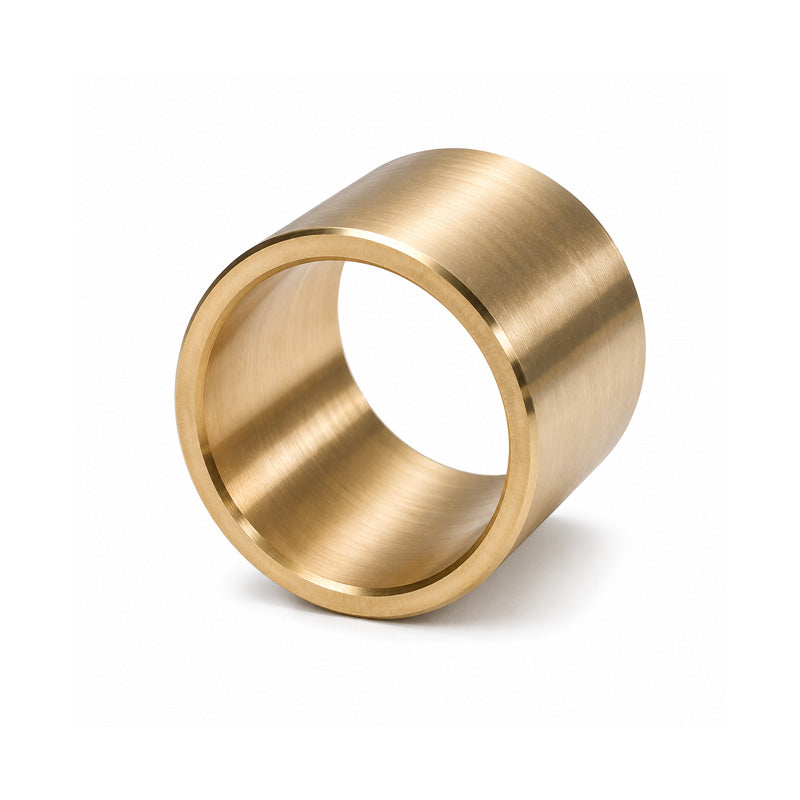

Budget PSM051006A51 Metric Plain Solid Bronze Bush 5x10x6mm
Budget PSM051006A51 Metric Plain Solid Bronze Bush 5x10x6mm
Regular price
Rs. 426.30
Regular price
Sale price
Rs. 426.30
Taxes included.
In stock
Price Break
10+
Rs. 379.41
19+
Rs. 358.09
29+
Rs. 353.83
39+
Rs. 349.57
49+
Rs. 345.30
74+
Rs. 341.04
99+
Rs. 319.73
199+
Rs. 315.46
249+
Rs. 311.20
499+
Rs. 306.94
999+
Rs. 298.41
Description
Description
PBM/PBMF Bronze Bushing: No other cylindrical bushing is used in as many and as varied applications as solid bronze bushings. The solid bronze material is ideally suited for highly demanding applications in tough environments. SKF offers a standard assortment of both plain and flanged cylindrical bushings in accordance with ISO 4379 and DIN1850. SKF Solid Bronze bushings are intended for oscillating movements in both rotational and axial directions. SKF Solid Bronze bushings are not intended for rotating movements at medium or high speeds.
Uses of Application Construction machinery, Transport equipment, Pulp and papermaking machinery, off-shore equipment
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 5mm
- Outside Diameter:
- 10mm
- Length:
- 6mm
Technical
Technical
| d | 5mm |
|---|---|
| D | 10mm |
| B | 6mm |
| a | 7mm |
| h | 252.5mm |
| a Angle | 124 deg |
| Tolerance shaft | e7 |
| Tolerance housing | H7 |
| Specific Dynamic Load Factor ( K ) | 25 N/mm 2 |
| Specific Static Load Factor ( K0 ) | 45 N/mm 2 |
| Permissable Sliding Velocity ( v ) | min. 0 m/s |
| Permissable Sliding Velocity ( v ) | max. 0.5 m/s |
| Coefficient of Friction ( y ) | min. 0.08 |
| Coefficient of Friction ( y ) | max. 0.15 |
| Weight | 0.005kg |
