SKU: PRM859080-SKF
SKF PRM859080 Metric Plain Wrapped Bronze Bush 85x90x80mm
SKF PRM859080 Metric Plain Wrapped Bronze Bush 85x90x80mm
Regular price
Rs. 14,400.83
Regular price
Sale price
Rs. 14,400.83
Taxes included.
In stock
Price Break
10+
Rs. 12,816.74
19+
Rs. 12,096.70
29+
Rs. 11,952.69
39+
Rs. 11,808.68
49+
Rs. 11,664.67
74+
Rs. 11,520.66
99+
Rs. 10,800.62
199+
Rs. 10,656.61
249+
Rs. 10,512.61
499+
Rs. 10,368.60
999+
Rs. 10,080.58
Description
Description

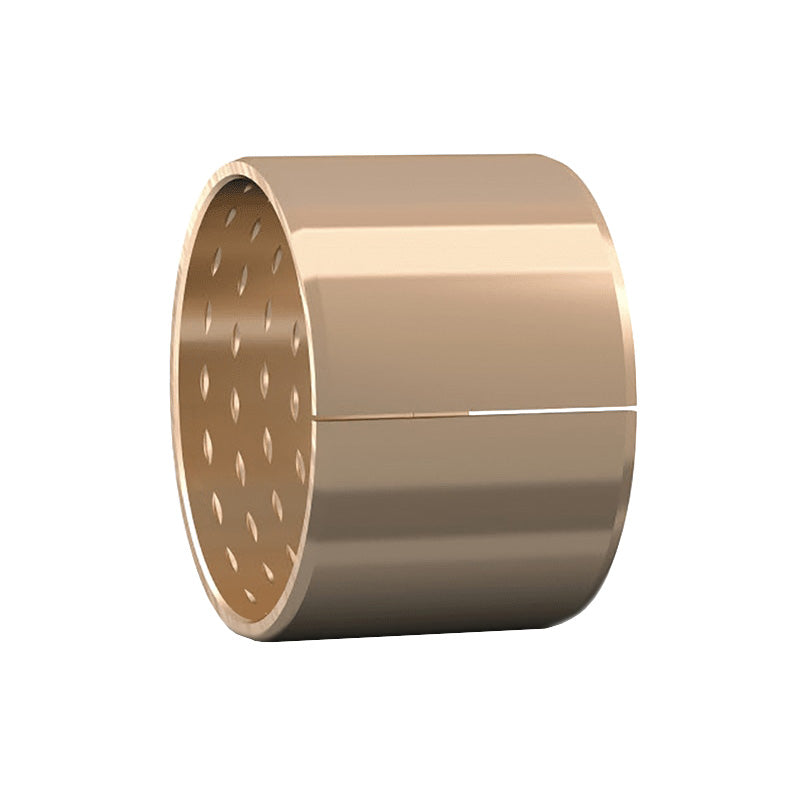

PRM Wrapped Bronze Bushes: SKF wrapped bronze bushings are particularly well suited for applications where high levels of contamination make relubrication necessary. The sliding surface of the wrapped bronze bushing contains diamond shaped pockets that must initially be filled with grease. The pockets act as reservoirs to progressively release lubricant during operation. SKF wrapped bronze bushings are made entirely of bronze, CuSn8. The bushings are produced from strips which are then wrapped and calibrated.
Benefits: Insensitive to contaminated environments, resistant to shock loads and vibrations at slow speeds, good resistance to corrosive environments
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 90mm
- Length:
- 80mm
Technical
Technical
| d | 85mm |
|---|---|
| D | 90mm |
| B | 80mm |
| Tolerance shaft | e7-f8 |
| Tolerance housing | H7 |
| Specific Dynamic Load Factor ( K ) | 40 N/mm 2 |
| Specific Static Load Factor ( K0 ) | 120 N/mm 2 |
| Permissable Sliding Velocity ( v ) | max. 1.0 m/s |
| Coefficient of Friction ( y ) | min. 0.08 |
| Coefficient of Friction ( y ) | max. 0.15 |
| Shaft Roughness (Ra) | min. 0.4µm |
| Shaft Roughness (Ra) | max. 0.8µm |
| 150-400 | 150-400 |
| Temperature Range | -40 deg C to +150 deg C |
| Weight | 0.45kg |
