SKU: PRM121415-EU

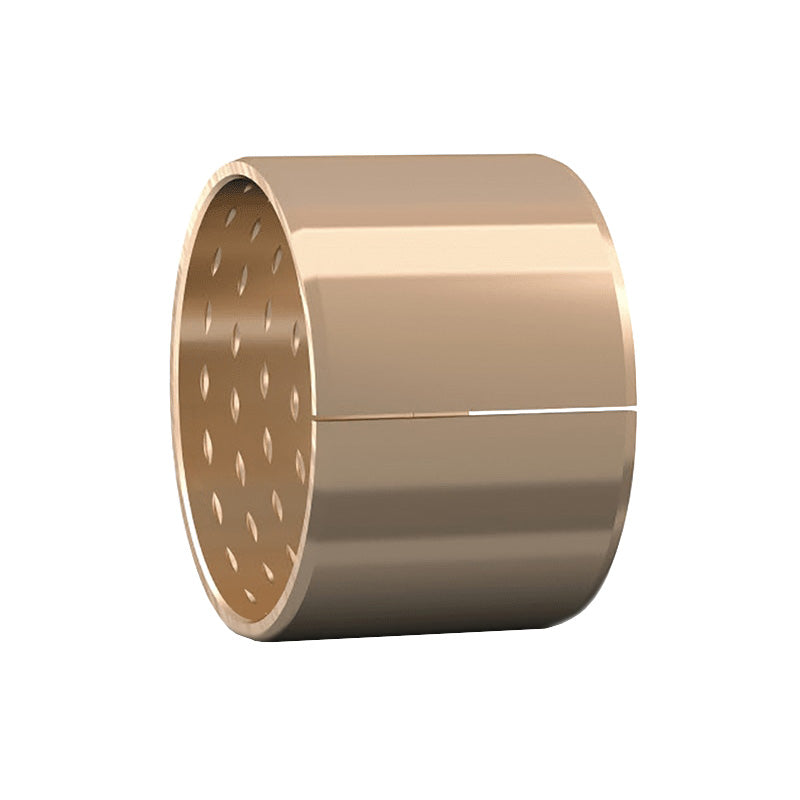

PRM121415 Premier Budget Metric Plain Wrapped Bronze Bush 12x14x15mm
Equivalent to: T90P 012.015
In stock
Price Break
Description
Premier Budget PRM Wrapped Bronze Bushes: Wrapped bronze bushings are particularly well suited for applications where high levels of contamination make relubrication necessary. The sliding surface of the wrapped bronze bushing contains diamond shaped pockets that must initially be filled with grease. The pockets act as reservoirs to progressively release lubricant during operation. Premier Budget wrapped bronze bushings are made entirely of bronze, CuSn8. The bushings are produced from strips which are then wrapped and calibrated.
Benefits: Insensitive to contaminated environments, resistant to shock loads and vibrations at slow speeds, good resistance to corrosive environments
Equivalent: T90P 012.015
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 14mm
- Length:
- 15mm
Technical
| d | 12mm |
|---|---|
| D | 14mm |
| B | 15mm |
| Tolerance shaft | e7-f8 |
| Tolerance housing | H7 |
| Specific Dynamic Load Factor ( K ) | 40 N/mm 2 |
| Specific Static Load Factor ( K0 ) | 120 N/mm 2 |
| Permissable Sliding Velocity ( v ) | max. 1.0 m/s |
| Coefficient of Friction ( y ) | min. 0.08 |
| Coefficient of Friction ( y ) | max. 0.15 |
| Shaft Roughness (Ra) | min. 0.4µm |
| Shaft Roughness (Ra) | max. 0.8µm |
| Shaft Hardness (HB) | 150-400 |
| Temperature Range | -40 deg C to +150 deg C |
| Weight | 0.012kg |
