SKU: PP30-MXL-025M

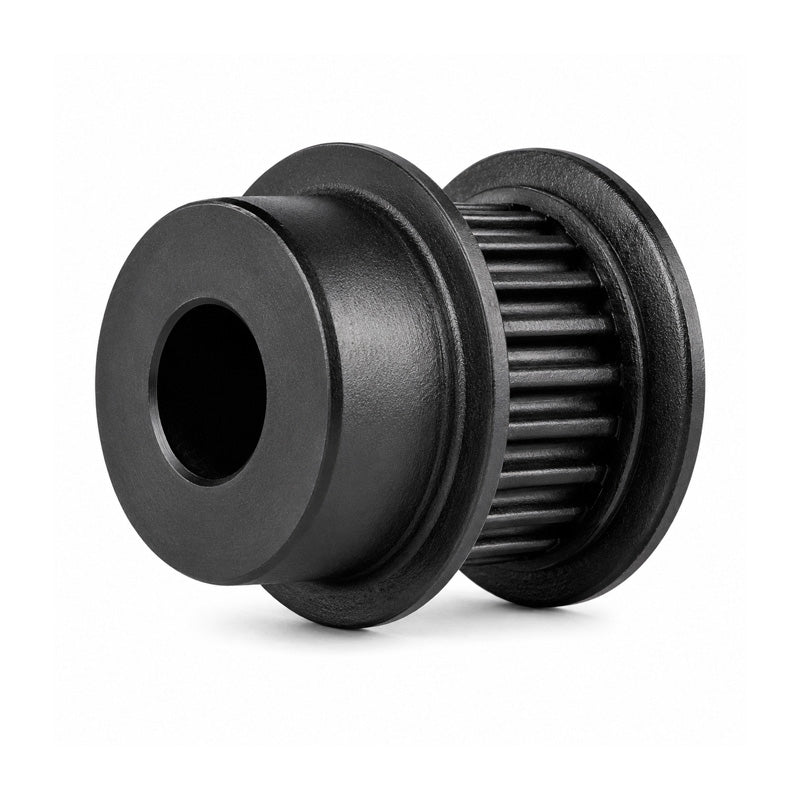

PP30-MXL-025M - 0.08 inch Pitch 30 Tooth Pilot Bore Polycarbonate (Glass Filled) Timing Pulley for 1/4 inch Wide Belt
PP30-MXL-025M - 0.08 inch Pitch 30 Tooth Pilot Bore Polycarbonate (Glass Filled) Timing Pulley for 1/4 inch Wide Belt
Regular price
Rs. 1,499.10
Regular price
Sale price
Rs. 1,499.10
Taxes included.
Equivalent to: PP30MXL025M
In stock
Price Break
10+
Rs. 1,334.20
19+
Rs. 1,259.24
29+
Rs. 1,244.25
39+
Rs. 1,229.26
49+
Rs. 1,214.27
74+
Rs. 1,199.28
99+
Rs. 1,124.33
199+
Rs. 1,109.33
249+
Rs. 1,094.34
499+
Rs. 1,079.35
999+
Rs. 1,049.37
Description
Description
Imperial Pilot Bore Timing Pulley: Imperial timing pulleys are available in both taper and pilot bore. The pulleys depending on the size are made from either Aluminium 6082, C45 Steel with black oxide treated surface or Cast Iron EN-GJL-200 and black phosphate. Where applicable flanges are made from S235JR Steel. Timing belt life can be increased with the proper pulley reducing running costs of your machinery.
Benefits: Available in a wide range of diameters and number of teeth along with standard widths.
Equivalent: PP30MXL025M
- Brand / Quality:
- Drive-Flex - High Quality
- Teeth:
- 30
- Material:
- Polycarbonate (Glass Filled)
- Belt Width Approx:
- 6.35mm = 0.25 (1/4) inch
- Pitch:
- 2.03mm = 0.08 inch
- Item Type:
- Flangeless Pilot Bored Pulley
Technical
Technical

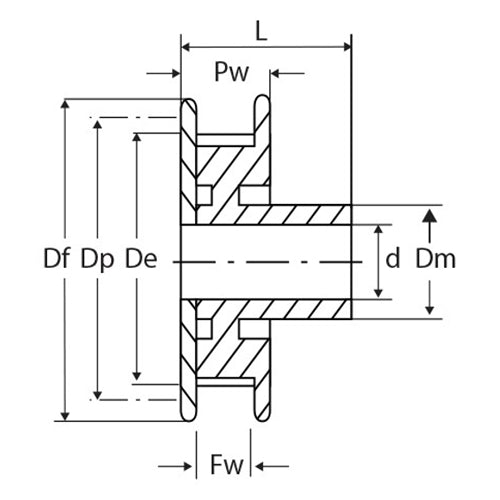

| No.teeth | 30 |
|---|---|
| Dp | 19.4mm |
| De | 18.89mm |
| Df | 24mm |
| Dm | 17mm |
| Fw | 8mm |
| L | 17.5mm |
| Bore (d) | 8mm |
| Material | Polycarbonate (Glass Filled) |
| Bore | Pilot Bored |
| Belt Width | 6.35mm = 0.25 (1/4) inch |
| Pitch | 2.03mm = 0.08 inch |
| Pw | 11.2mm |
